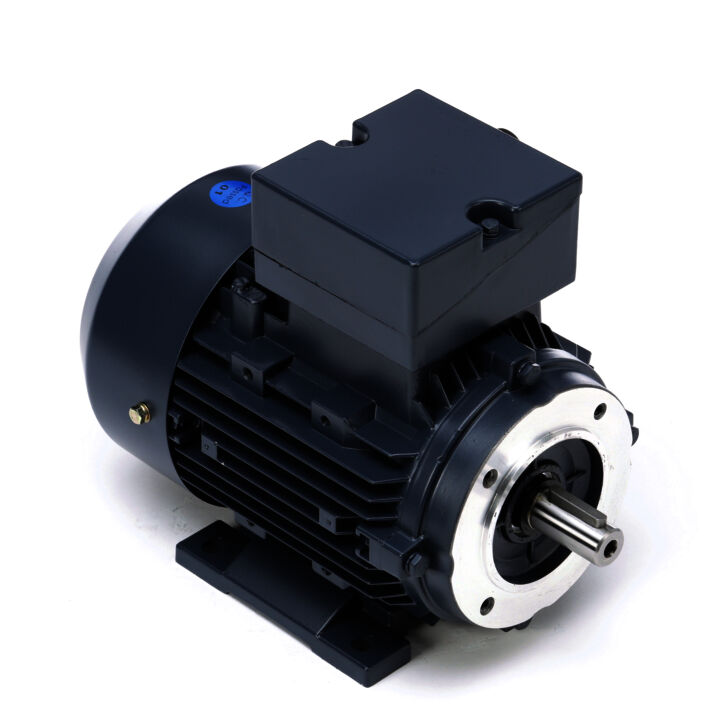

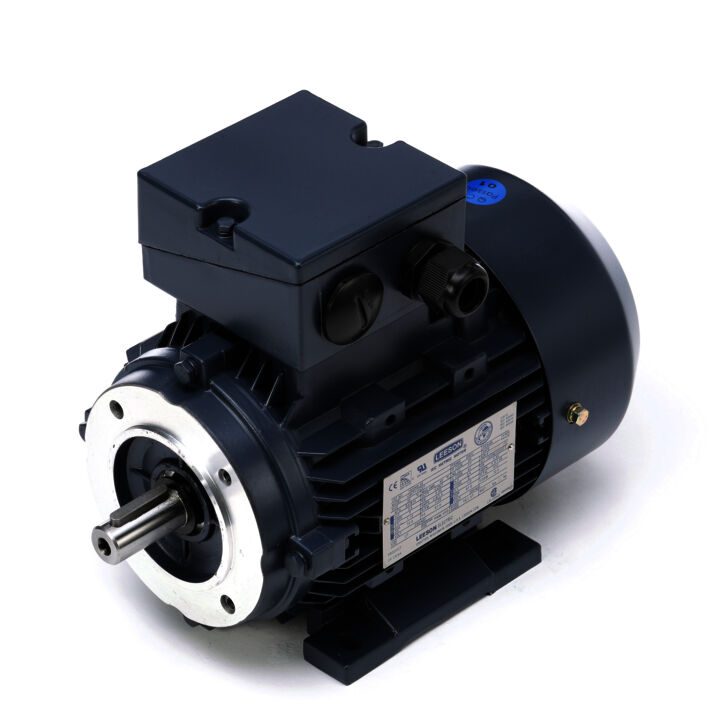

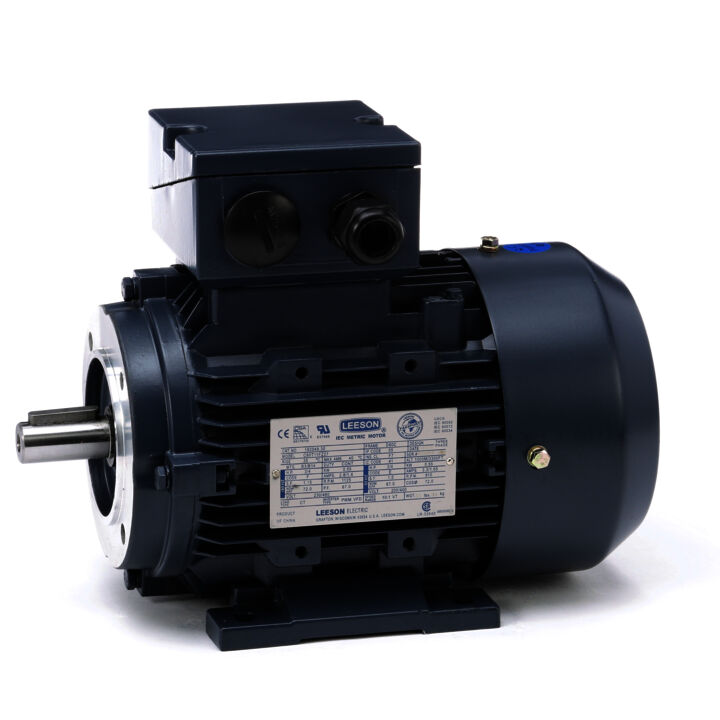

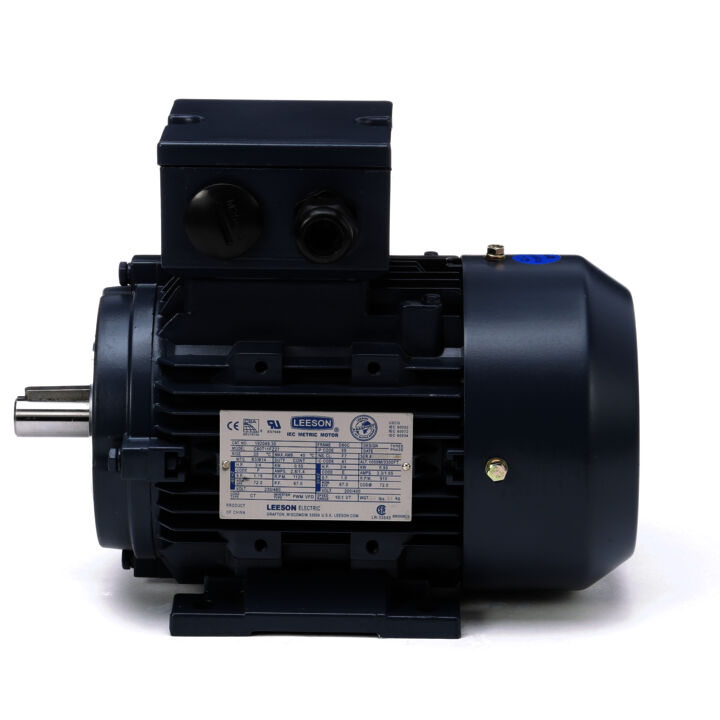

Obsolete, replaced by 192049.00 -..3/4HP-0.55kW..1200RPM.D80C.TEFC.230/460V.3PH.60HZ.CONT.40C..B3 / B14..............
Obsolete, replaced by 192049.00 -..3/4HP-0.55kW..1200RPM.D80C.TEFC.230/460V.3PH.60HZ.CONT.40C..B3 / B14.............. - 192049.30
Part#: 192049.30
Catalog#: 192049.30
Weight: 24.4 lb
Your Price: Login is Required
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 0.75 & 0.75 Hp |
| Output KW | Output KW: 0.56 & 0.56 kW | Voltage | Voltage: 230/460 & 200/400 V |
| Speed | Speed: 1125 & 910 rpm | Service Factor | Service Factor: 1.15 & 1.0 |
| Frame | Frame: D80C | Enclosure | Enclosure: Totally Enclosed Fan Cooled |
| Thermal Protection | Thermal Protection: No Protection | Efficiency | Efficiency: 72 & 67 % |
| Ambient Temperature | Ambient Temperature: 40 °C | Frequency | Frequency: 60 & 50 Hz |
| Current | Current: 2.8/1.4 & 3.3/1.65 A | Power Factor | Power Factor: 67 |
| Duty | Duty: Continuous | Insulation Class | Insulation Class: F |
| Design Code | Design Code: NO DESIGN CODE | KVA Code | KVA Code: F |
| Drive End Bearing Size | Drive End Bearing Size: 6204 | Opp Drive End Bearing Size | Opp Drive End Bearing Size: 6204 |
| UL | UL: Recognized | CSA | CSA: Y |
| CE | CE: Y | IP Code | IP Code: 55 |
| Number of Speeds | Number of Speeds: 1 |
| Electrical Type | Electrical Type: Squirrel Cage Inverter Rated | Starting Method | Starting Method: Line Or Inverter |
| Poles | Poles: 6 | Rotation | Rotation: Reversible |
| Resistance Main | Resistance Main: 8.1 Ohms | Mounting | Mounting: B3 |
| Motor Orientation | Motor Orientation: Horizontal Or Up Or Down | Drive End Bearing | Drive End Bearing: Ball |
| Opp Drive End Bearing | Opp Drive End Bearing: Ball | Frame Material | Frame Material: Aluminum |
| Shaft Type | Shaft Type: IEC | Assembly/Box Mounting | Assembly/Box Mounting: F3 |
| Inverter Load | Inverter Load: CONSTANT 10:1 |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: C |
| Current | Current: 2.8/1.4 A | Synchronous RPM | Synchronous RPM: 1200 & 1000 rpm |
| Frequency | Frequency: 60 Hz | Speed | Speed: 1125 rpm |
| Connection Drawing | Connection Drawing: 00546505 | Outline Drawing | Outline Drawing: OL19204930 |
| Voltage | Voltage: 230/460 V | Output KW | Output KW: 0.56 kW |
| Output HP | Output HP: 0.75 Hp | Frame Size | Frame Size: 80 |
| Efficiency | Efficiency: 72 % | Frame Prefix | Frame Prefix: D |
