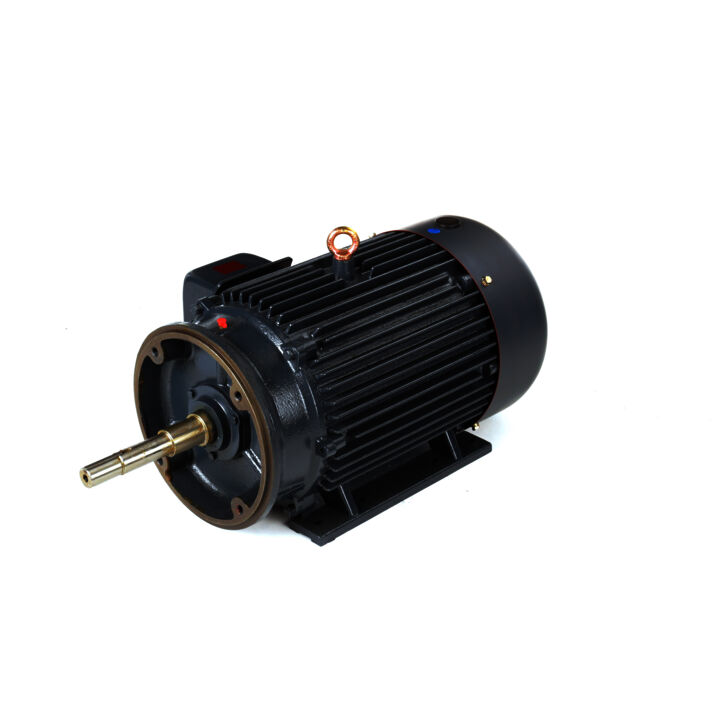

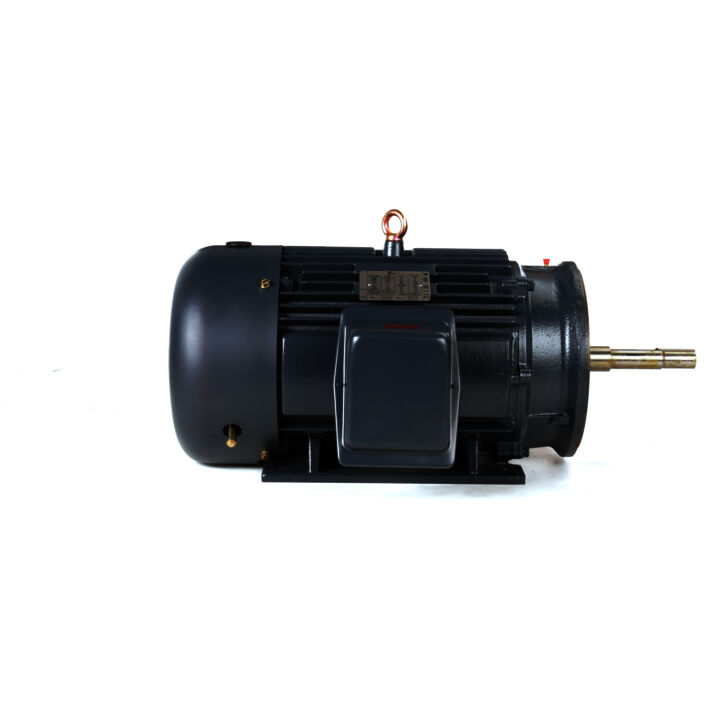

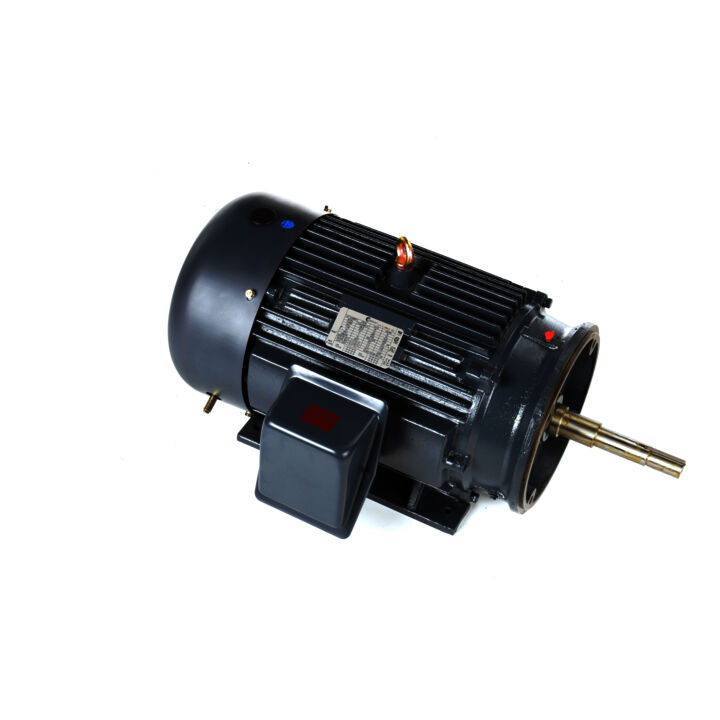

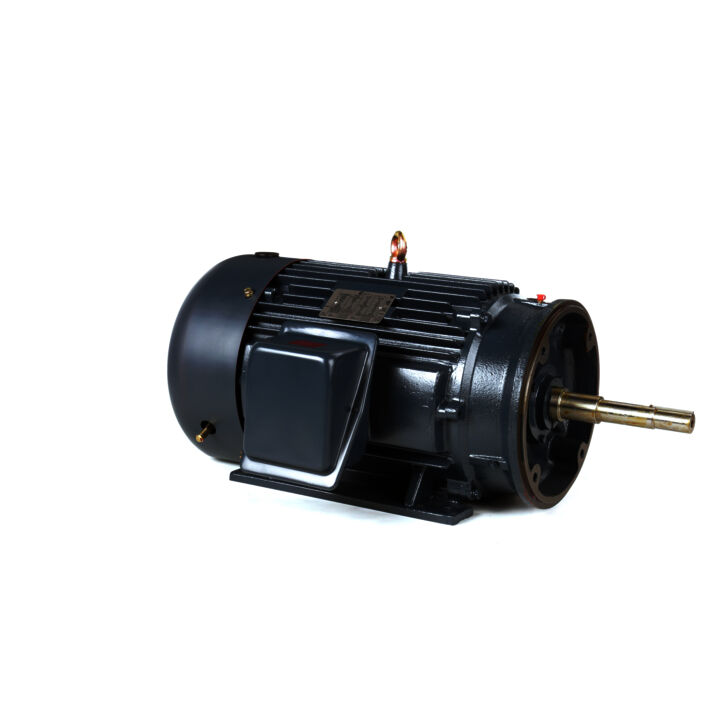

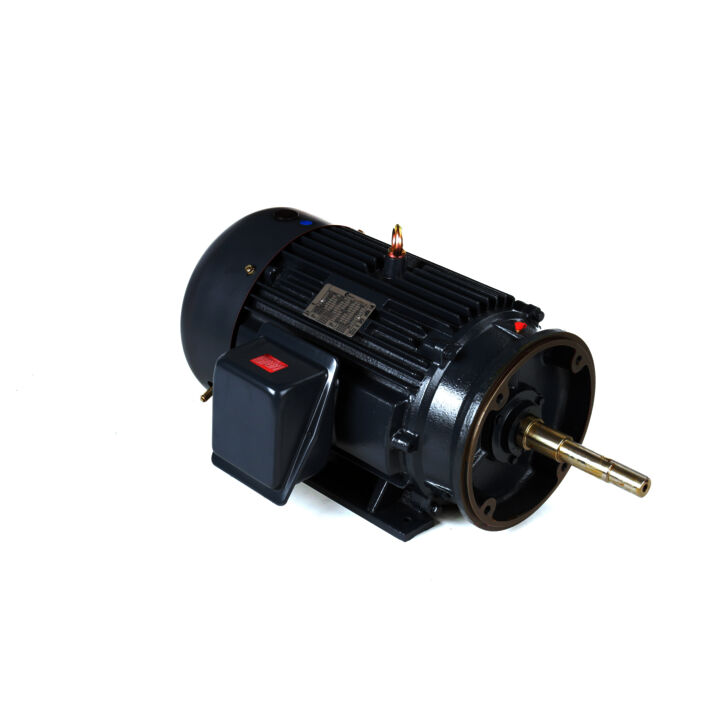

Close-Coupled Pump Motor, 30 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, 286JP Frame, TEFC - CPE58

Part#: CPE58

Catalog#: CPE58

Weight: 525 lb

location_on Where to Buy

Key Features

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2033
  • Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power

Specifications

Phase Phase: 3 Output HP Output HP: 30 Hp
Output KW Output KW: 22.4 kW Voltage Voltage: 208-230/460 V
Speed Speed: 3560 rpm Service Factor Service Factor: 1.15
Frame Frame: 286JP Enclosure Enclosure: Totally Enclosed Fan Cooled
Thermal Protection Thermal Protection: No Protection Ambient Temperature Ambient Temperature: 40 °C
Frequency Frequency: 60 Hz Current Current: 45 A
Duty Duty: Continuous Insulation Class Insulation Class: F
UL UL: Recognized CSA CSA: Y
Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: POLYPHASE Starting Method Starting Method: Across The Line
Poles Poles: 2 Rotation Rotation: Reversible
Mounting Mounting: Rigid Base Drive End Bearing Drive End Bearing: Ball
Opp Drive End Bearing Opp Drive End Bearing: Ball Frame Material Frame Material: Cast Iron
Shaft Type Shaft Type: Keyed Overall Length Overall Length: 35 in
Frame Length Frame Length: 15.74 in Shaft Diameter Shaft Diameter: 1.750 in
Shaft Extension Shaft Extension: 8.15 in
Service Factor Service Factor: 1.15 Frame Suffix Frame Suffix: JP
Synchronous RPM Synchronous RPM: 3600 rpm Frequency Frequency: 60 Hz
Speed Speed: 3560 rpm Connection Drawing Connection Drawing: A-EE7308AA
Outline Drawing Outline Drawing: SS620568 Voltage Voltage: 208-230/460 V
Output KW Output KW: 22.4 kW Output HP Output HP: 30 Hp
Frame Size Frame Size: 286

Efficiency

Information not available at the moment. Please check back later!
