General Purpose Motor, 7.5 HP, 3 Ph, 60 Hz, 230/460 V, 3600 RPM, 184T Frame, DP
Resource Center

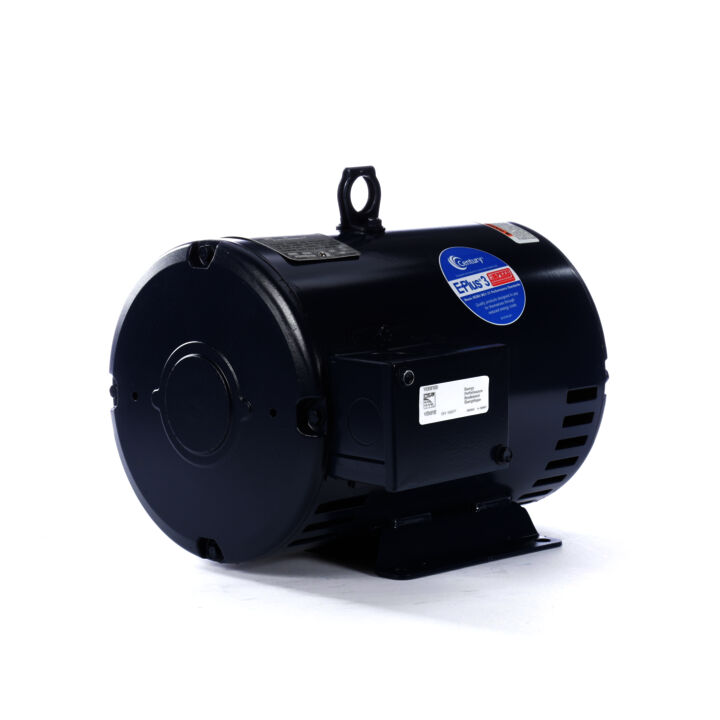

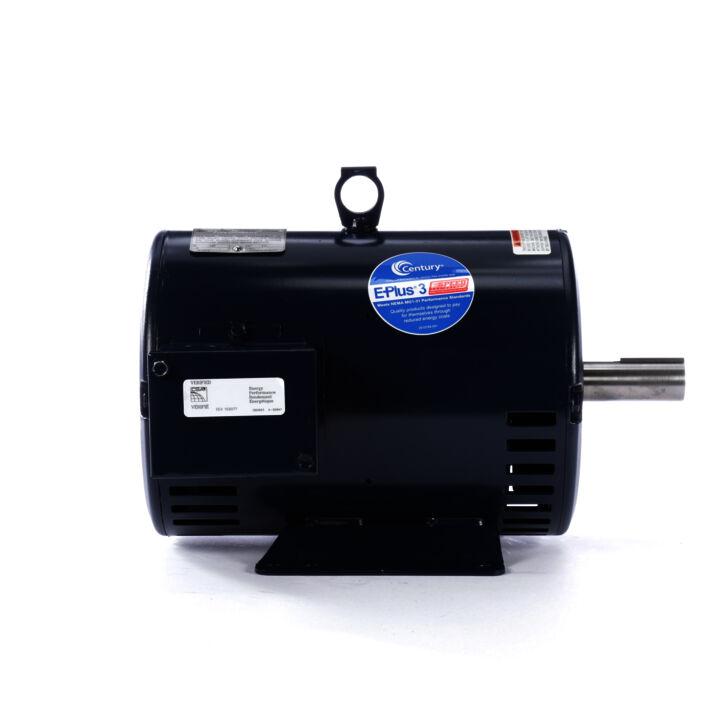

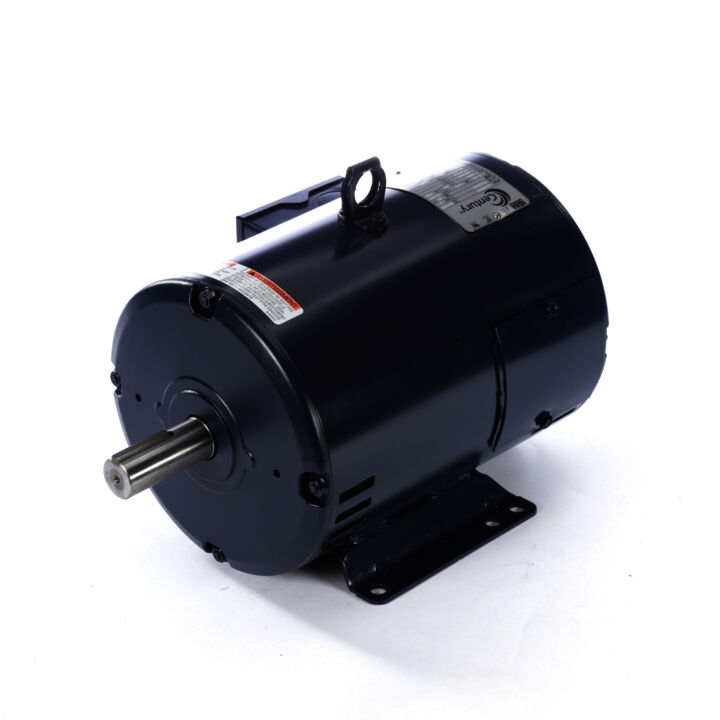

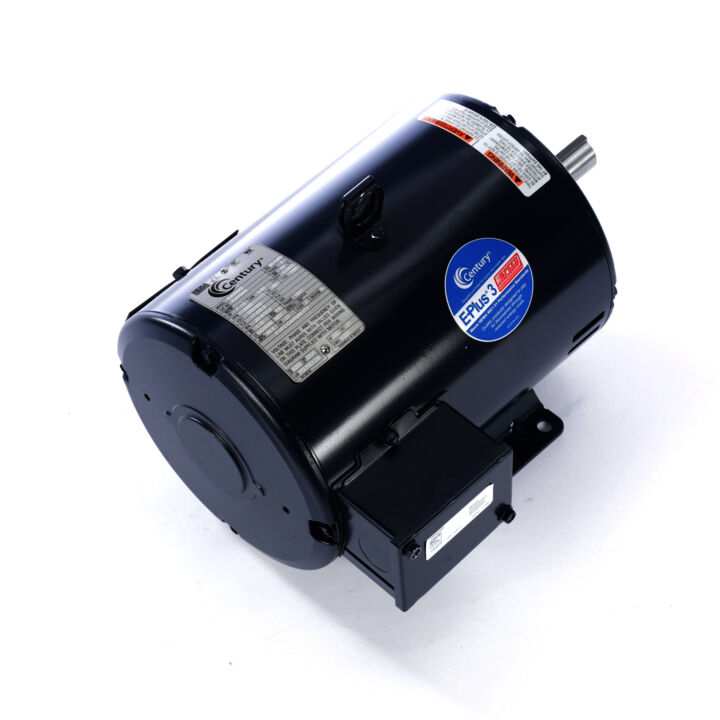

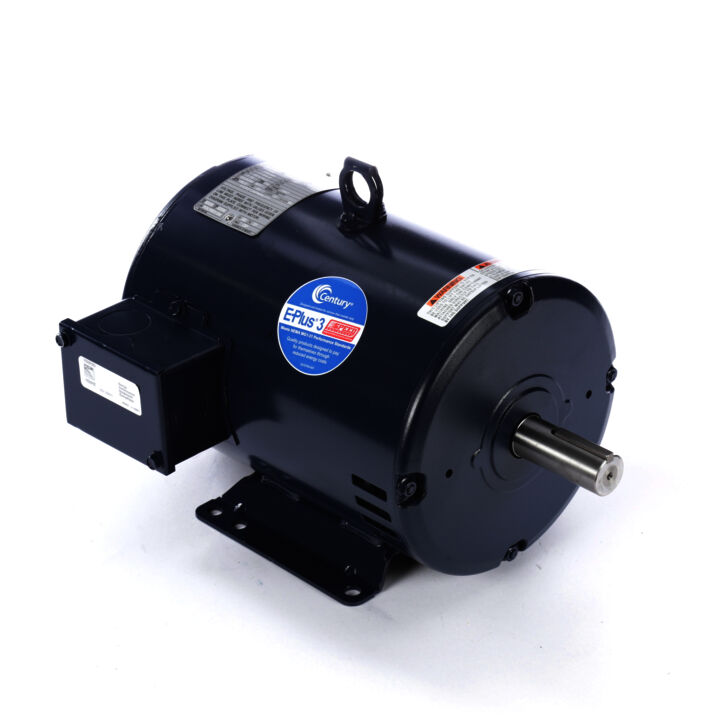

General Purpose Motor, 7.5 HP, 3 Ph, 60 Hz, 230/460 V, 3600 RPM, 184T Frame, DP - E205M2

Part#: E205M2

Catalog#: E205M2

Weight: 86 lb

location_on Where to Buy

Key Features

  • Meets or exceeds all USA mandated efficiencies
  • Rolled steel construction
  • 6:1 Variable Torque
  • 60/50 Hz (50Hz @ next lower HP, 1.15 SF)

Specifications

Phase Phase: 3 Output HP Output HP: 7.5 Hp
Output KW Output KW: 5.6 kW Voltage Voltage: 230/460 V
Speed Speed: 3490 rpm Service Factor Service Factor: 1.15
Frame Frame: 184T Enclosure Enclosure: Drip Proof
Thermal Protection Thermal Protection: No Protection Ambient Temperature Ambient Temperature: 40 °C
Frequency Frequency: 60 Hz Current Current: 17.8/8.9 A
Duty Duty: Continuous Insulation Class Insulation Class: F
UL UL: Recognized CSA CSA: Y
CE CE: Y Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: Polyphase Starting Method Starting Method: Across The Line
Poles Poles: 2 Rotation Rotation: Reversible
Mounting Mounting: Rigid Base Drive End Bearing Drive End Bearing: Ball
Opp Drive End Bearing Opp Drive End Bearing: Ball Frame Material Frame Material: Rolled Steel
Shaft Type Shaft Type: Keyed Overall Length Overall Length: 14.69 in
Frame Length Frame Length: 10.50 in Shaft Diameter Shaft Diameter: 1.125 in
Shaft Extension Shaft Extension: 2.81 in
Service Factor Service Factor: 1.15 Frame Suffix Frame Suffix: T
Synchronous RPM Synchronous RPM: 3600 rpm Frequency Frequency: 60 Hz
Speed Speed: 3490 rpm Connection Drawing Connection Drawing: 80022802
Outline Drawing Outline Drawing: E205M2-S01 Voltage Voltage: 230/460 V
Output KW Output KW: 5.6 kW Output HP Output HP: 7.50 Hp
Frame Size Frame Size: 184

Efficiency

Information not available at the moment. Please check back later!
