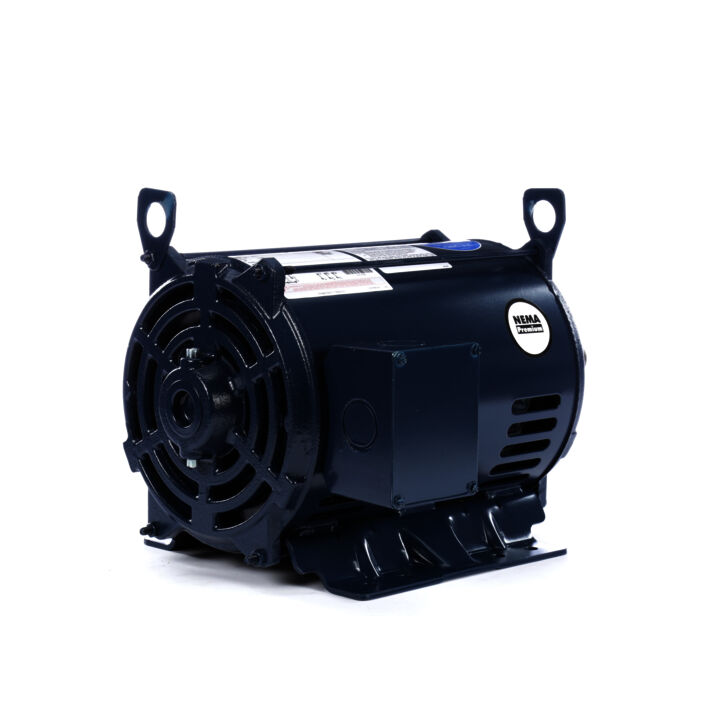

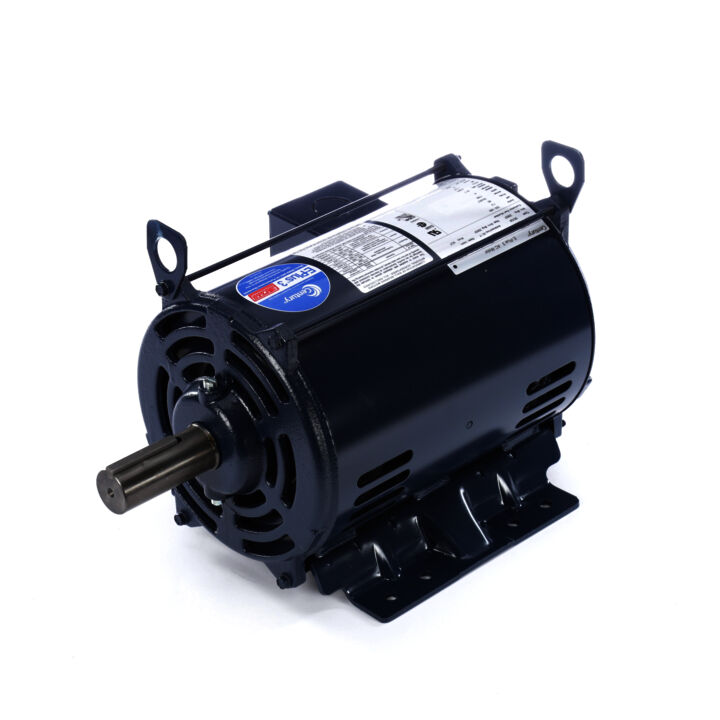

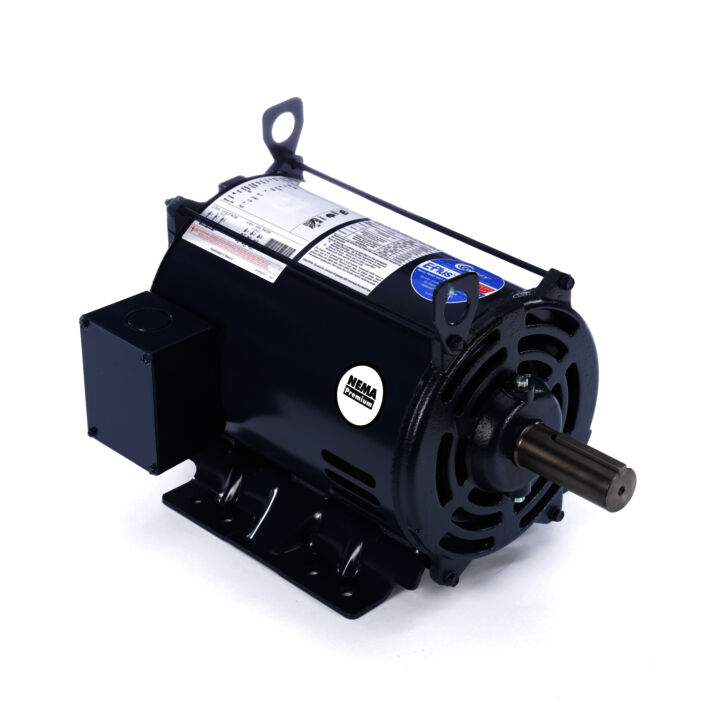

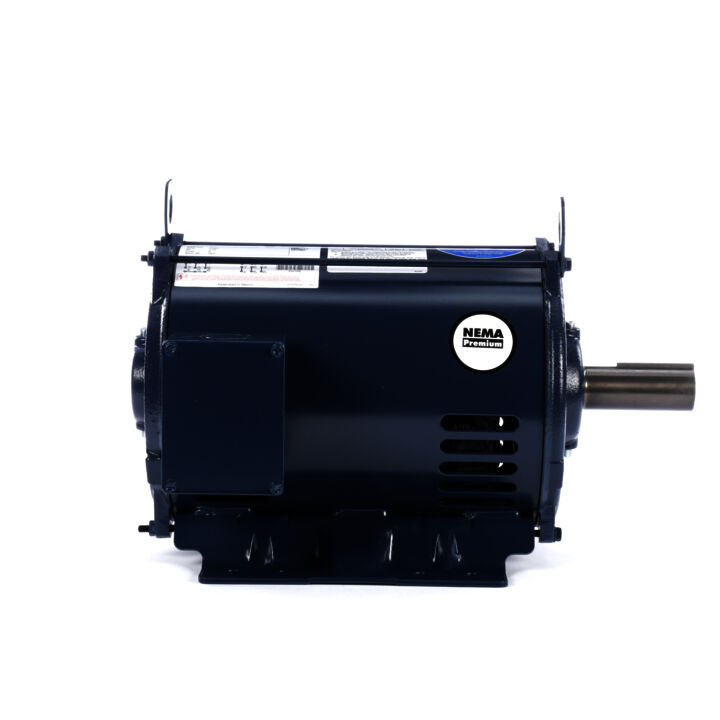

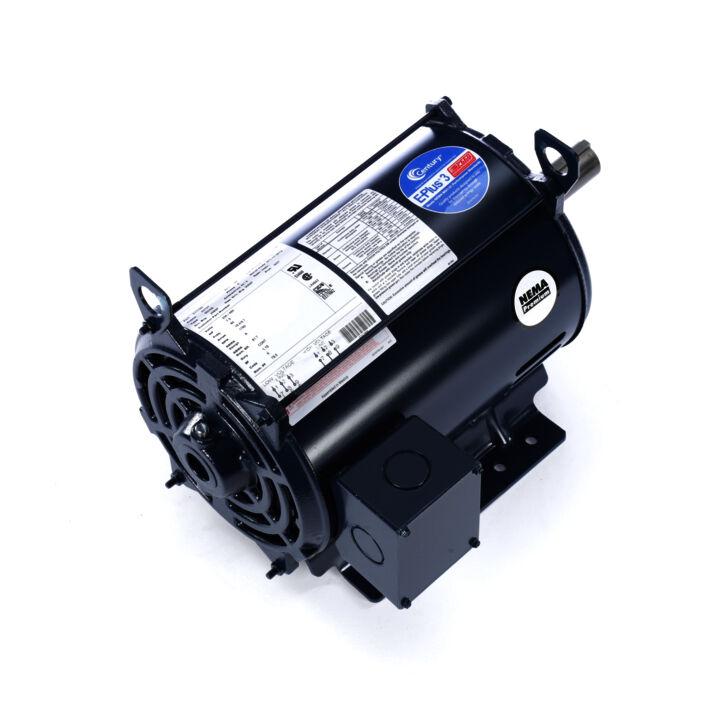

General Purpose Motor, 7.5 HP, 3 Ph, 60 Hz, 230/460 V, 1800 RPM, S213T Frame, DP
General Purpose Motor, 7.5 HP, 3 Ph, 60 Hz, 230/460 V, 1800 RPM, S213T Frame, DP - E317M2
Part#: E317M2
Catalog#: E317M2
Weight: 123 lb
List Price: $2,374.00
Your Price: Login is Required
Key Features
- Meets or exceeds all USA mandated efficiencies
- Rolled steel construction
- 6:1 Variable Torque
- 60/50 Hz (50Hz @ next lower HP, 1.15 SF)
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 7.5 Hp |
| Output KW | Output KW: 5.6 kW | Voltage | Voltage: 230/460 V |
| Speed | Speed: 1760 rpm | Service Factor | Service Factor: 1.15 |
| Frame | Frame: S213T | Enclosure | Enclosure: Drip Proof |
| Thermal Protection | Thermal Protection: No Protection | Ambient Temperature | Ambient Temperature: 40 °C |
| Frequency | Frequency: 60 Hz | Current | Current: 19.4/9.7 A |
| Duty | Duty: Continuous | Insulation Class | Insulation Class: F |
| UL | UL: Recognized | CSA | CSA: Y |
| CE | CE: N | Number of Speeds | Number of Speeds: 1 |
| Electrical Type | Electrical Type: Three Phase | Starting Method | Starting Method: Across The Line |
| Poles | Poles: 4 | Rotation | Rotation: Counterclockwise |
| Mounting | Mounting: Rigid Base | Drive End Bearing | Drive End Bearing: Ball |
| Opp Drive End Bearing | Opp Drive End Bearing: Ball | Frame Material | Frame Material: Rolled Steel |
| Shaft Type | Shaft Type: Keyed | Overall Length | Overall Length: 17.51 in |
| Frame Length | Frame Length: 11 in | Shaft Diameter | Shaft Diameter: 1.375 in |
| Shaft Extension | Shaft Extension: 3.5 in |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: T |
| Synchronous RPM | Synchronous RPM: 1800 rpm | Frequency | Frequency: 60 Hz |
| Speed | Speed: 1760 rpm | Connection Drawing | Connection Drawing: 80022802.PCX |
| Outline Drawing | Outline Drawing: E317M2-S01 | Voltage | Voltage: 230/460 V |
| Output KW | Output KW: 5.6 kW | Output HP | Output HP: 7.50 Hp |
| Frame Size | Frame Size: 213 | Frame Prefix | Frame Prefix: S |
| Packaged Length | Packaged Length: 22.00 IN | Weight | Weight: 123.00 LB |
| UPC | UPC: 786674064240 | Packaged Width | Packaged Width: 15.25 IN |
| HTC | HTC: 8501.52.4000 | Country of Origin | Country of Origin: Mexico |
| Packaged Height | Packaged Height: 13.38 IN |
Efficiency
Information not available at the moment. Please check back later!
