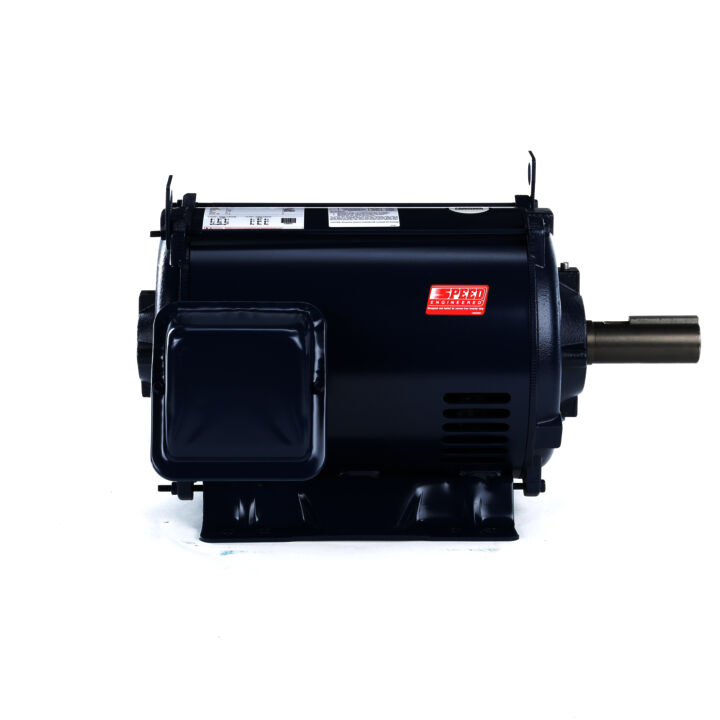

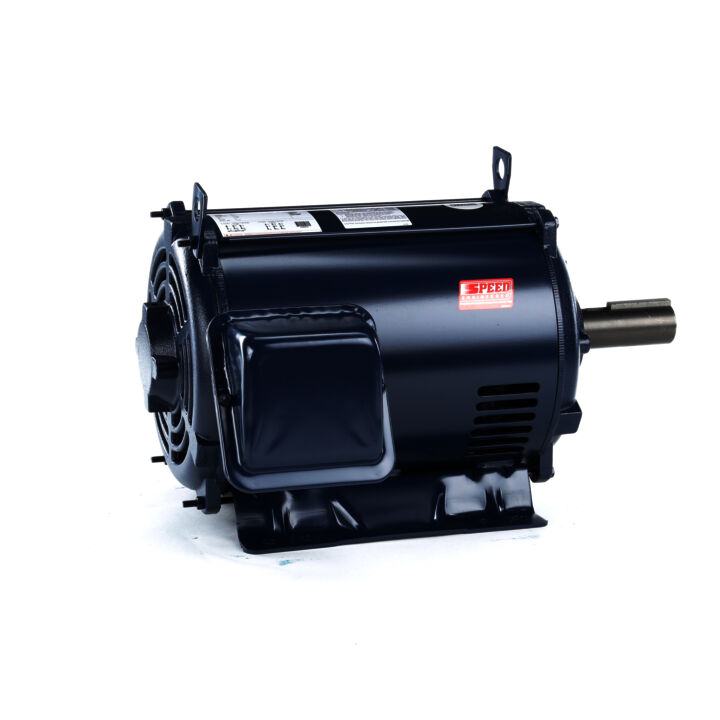

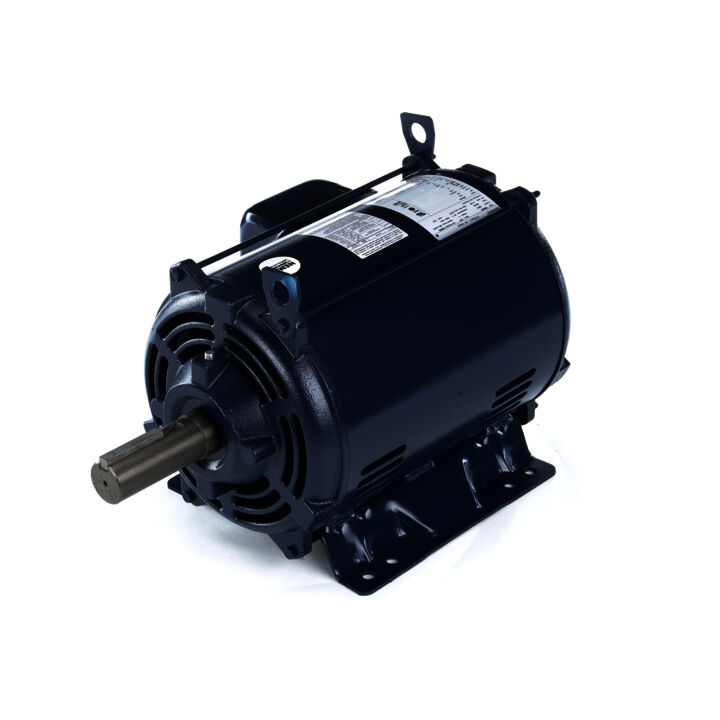

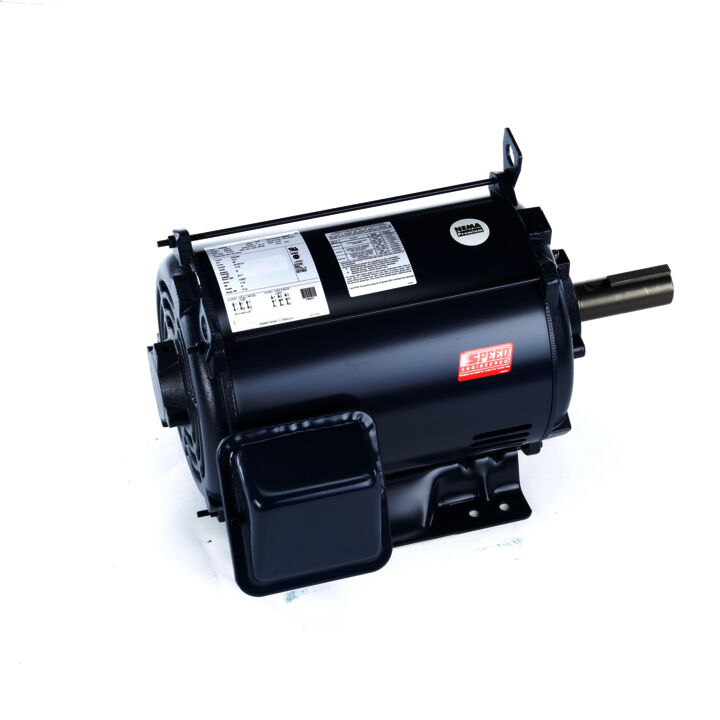

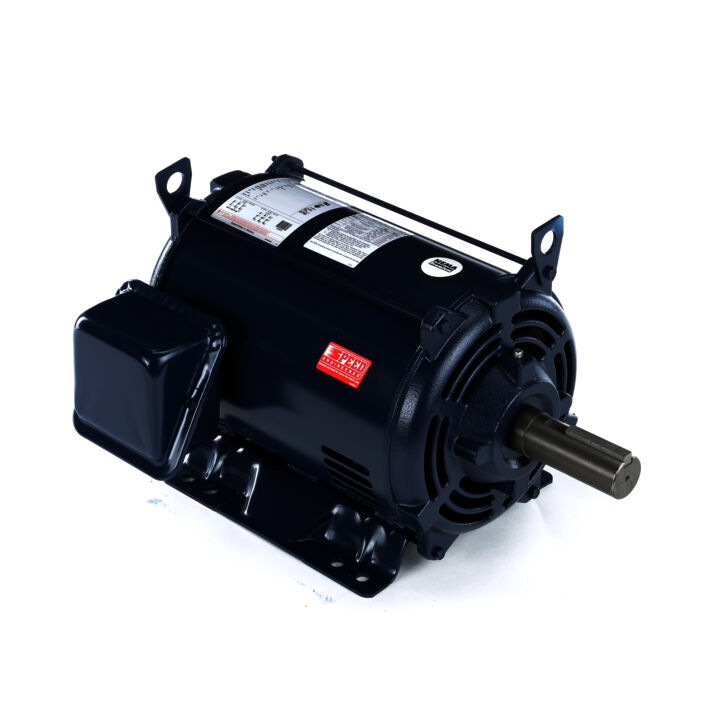

General Purpose Motor, 15.0 HP, 3 Ph, 60 Hz, 230/460 V, 1200 RPM, S284T Frame, ODP
General Purpose Motor, 15.0 HP, 3 Ph, 60 Hz, 230/460 V, 1200 RPM, S284T Frame, ODP - E586M2
Part#: E586M2
Catalog#: E586M2
Weight: 317 lb
Your Price: Login is Required
Key Features
- Meets or exceeds all USA mandated efficiencies
- Rolled steel construction
- 6:1 Variable Torque
- 60/50 Hz (50Hz @ next lower HP, 1.15 SF)
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 15 Hp |
| Output KW | Output KW: 11.2 kW | Voltage | Voltage: 230/460 V |
| Speed | Speed: 1170 rpm | Service Factor | Service Factor: 1.15 |
| Frame | Frame: S284T | Enclosure | Enclosure: Open Drip Proof |
| Thermal Protection | Thermal Protection: No Protection | Ambient Temperature | Ambient Temperature: 40 °C |
| Frequency | Frequency: 60 Hz | Current | Current: 43.0/21.5 A |
| Duty | Duty: Continuous | Insulation Class | Insulation Class: F |
| UL | UL: Recognized | CSA | CSA: Y |
| CE | CE: N | Number of Speeds | Number of Speeds: 1 |
| Electrical Type | Electrical Type: Three Phase | Starting Method | Starting Method: Across The Line |
| Poles | Poles: 6 | Rotation | Rotation: Reversible |
| Mounting | Mounting: Rigid Base | Drive End Bearing | Drive End Bearing: Ball |
| Opp Drive End Bearing | Opp Drive End Bearing: Ball | Frame Material | Frame Material: Rolled Steel |
| Shaft Type | Shaft Type: Keyed | Overall Length | Overall Length: 24.22 in |
| Frame Length | Frame Length: 14 in | Shaft Diameter | Shaft Diameter: 1.875 in |
| Shaft Extension | Shaft Extension: 5.09 in |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: T |
| Synchronous RPM | Synchronous RPM: 1200 rpm | Frequency | Frequency: 60 Hz |
| Speed | Speed: 1170 rpm | Connection Drawing | Connection Drawing: 90270401.PCX |
| Outline Drawing | Outline Drawing: 80009201-S01 | Voltage | Voltage: 230/460 V |
| Output KW | Output KW: 11.2 kW | Output HP | Output HP: 15 Hp |
| Frame Size | Frame Size: 284 | Frame Prefix | Frame Prefix: S |
| Packaged Length | Packaged Length: 20.25 IN | Weight | Weight: 317.00 LB |
| UPC | UPC: 786674064424 | Packaged Width | Packaged Width: 18.50 IN |
| HTC | HTC: 8501.52.4000 | Country of Origin | Country of Origin: Mexico |
| Packaged Height | Packaged Height: 18.00 IN |
Efficiency
Information not available at the moment. Please check back later!
