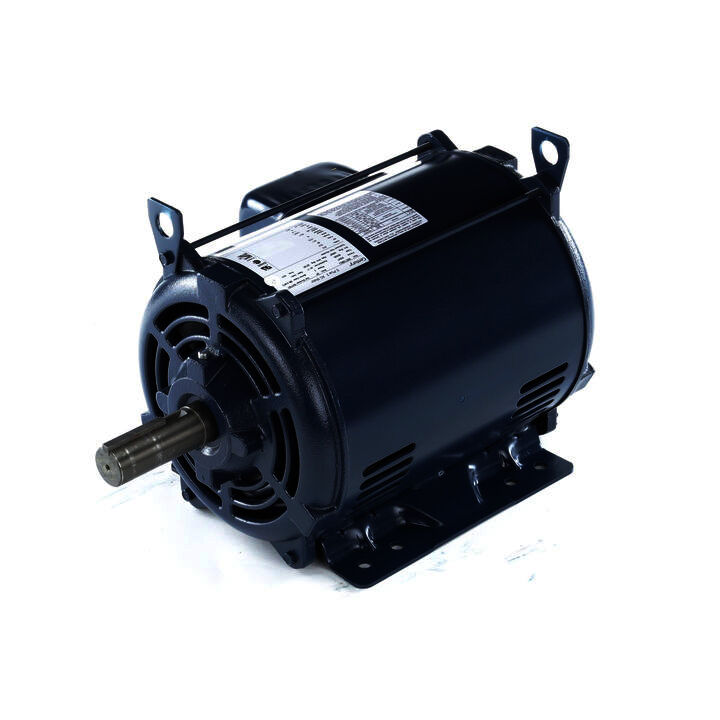

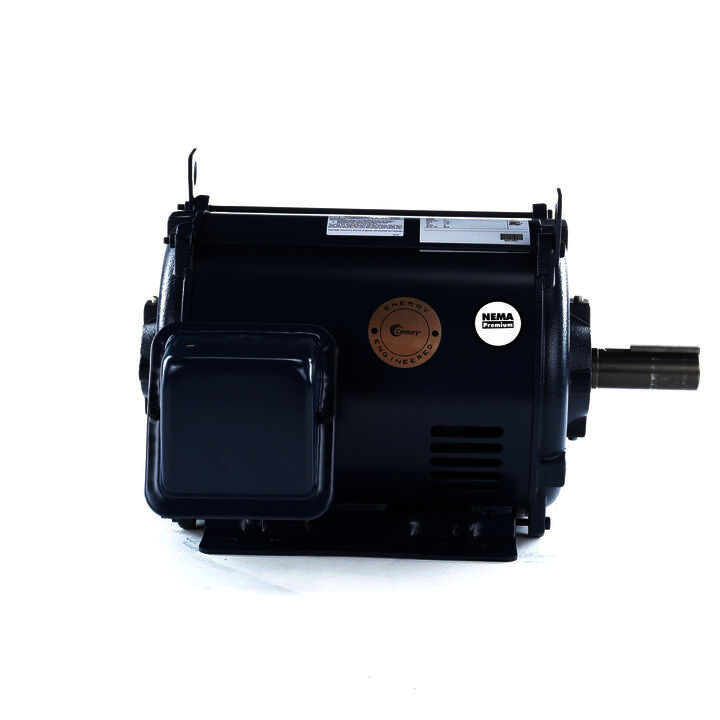

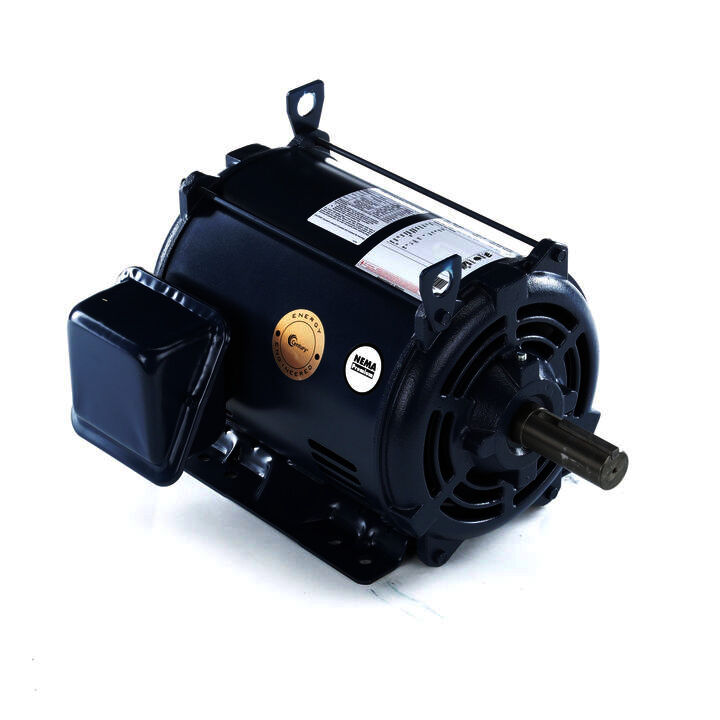

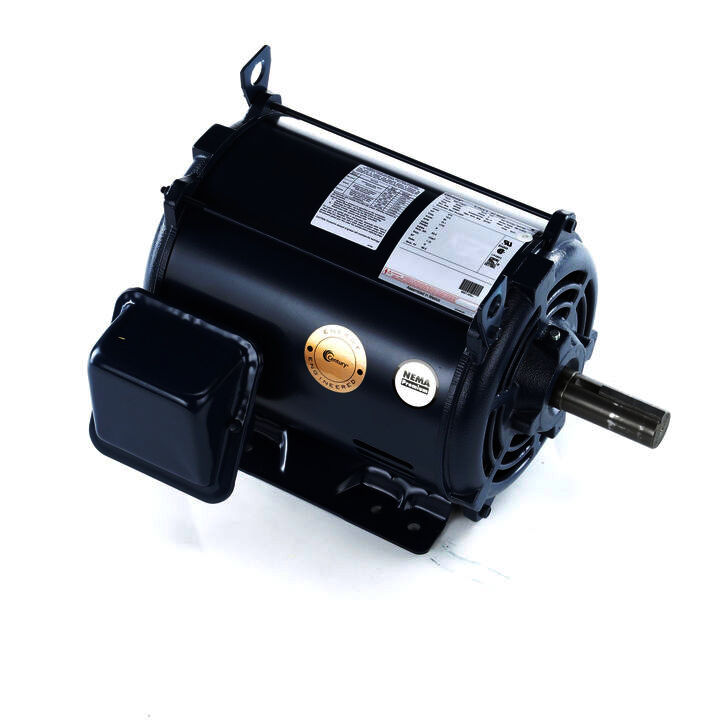

General Purpose Motor, 15.0 HP, 3 Ph, 60 Hz, 575 V, 1800 RPM, S254T Frame, DP
General Purpose Motor, 15.0 HP, 3 Ph, 60 Hz, 575 V, 1800 RPM, S254T Frame, DP - E927M2
Part#: E927M2
Catalog#: E927M2
Weight: 236 lb
List Price: $4,076.00
Your Price: Login is Required
Key Features
- Meets or exceeds all USA mandated efficiencies
- Rolled steel construction
- 6:1 Variable Torque
- 60/50 Hz (50Hz @ next lower HP, 1.15 SF)
Specifications

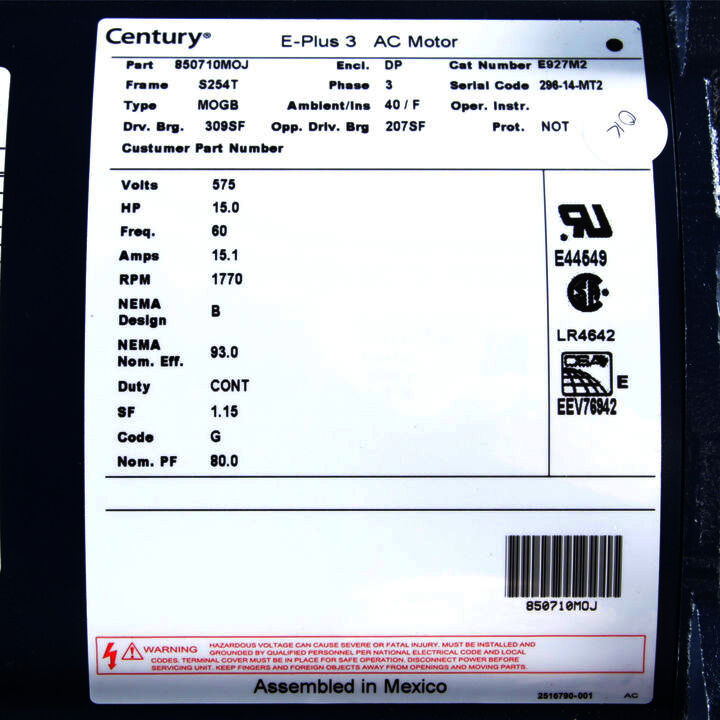

| Phase | Phase: 3 | Output HP | Output HP: 15 Hp |
| Output KW | Output KW: 11.2 kW | Voltage | Voltage: 575 V |
| Speed | Speed: 1770 rpm | Service Factor | Service Factor: 1.15 |
| Frame | Frame: S254T | Enclosure | Enclosure: Drip Proof |
| Thermal Protection | Thermal Protection: No Protection | Efficiency | Efficiency: 93 % |
| Ambient Temperature | Ambient Temperature: 40 °C | Frequency | Frequency: 60 Hz |
| Current | Current: 15.1 A | Duty | Duty: Continuous |
| Insulation Class | Insulation Class: F | UL | UL: Recognized |
| CSA | CSA: Y | CE | CE: N |
| Number of Speeds | Number of Speeds: 1 |
| Electrical Type | Electrical Type: Three Phase | Starting Method | Starting Method: Across The Line |
| Poles | Poles: 4 | Rotation | Rotation: Counterclockwise |
| Mounting | Mounting: Rigid Base | Drive End Bearing | Drive End Bearing: Ball |
| Opp Drive End Bearing | Opp Drive End Bearing: Ball | Frame Material | Frame Material: Rolled Steel |
| Shaft Type | Shaft Type: Keyed | Overall Length | Overall Length: 22.10 in |
| Frame Length | Frame Length: 13 in | Shaft Diameter | Shaft Diameter: 1.625 in |
| Shaft Extension | Shaft Extension: 4.4 in |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: T |
| Synchronous RPM | Synchronous RPM: 1800 rpm | Frequency | Frequency: 60 Hz |
| Speed | Speed: 1770 rpm | Connection Drawing | Connection Drawing: EE7300 |
| Outline Drawing | Outline Drawing: E927M2-S01 | Voltage | Voltage: 575 V |
| Output KW | Output KW: 11.2 kW | Output HP | Output HP: 15 Hp |
| Frame Size | Frame Size: 254 | Efficiency | Efficiency: 93 % |
| Frame Prefix | Frame Prefix: S |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
|---|---|---|---|---|---|---|---|---|
| Curvepoint: Locked-Rotor | Current (Amps): 114.00 | Current (%): 603.0 | Torque (ft-lbs): 84.10 | Torque (%): 189.0 | Speed (RPM): 0 | Rated Output (KW): 0.00 | Power Factor (%): 0.0 | Rated Output (Hp): 15.00 |
| Curvepoint: Full Load | Current (Amps): 18.90 | Current (%): 100.0 | Torque (ft-lbs): 44.50 | Torque (%): 100.0 | Speed (RPM): 1,770 | Rated Output (KW): 0.00 | Power Factor (%): 0.0 | Rated Output (Hp): 15.00 |
| Curvepoint: Pull-Up | Current (Amps): 112.00 | Current (%): 593.0 | Torque (ft-lbs): 82.00 | Torque (%): 184.0 | Speed (RPM): 300 | Rated Output (KW): 0.00 | Power Factor (%): 0.0 | Rated Output (Hp): 15.00 |
| Curvepoint: Break-Down | Current (Amps): 0.00 | Current (%): 0.0 | Torque (ft-lbs): 117.00 | Torque (%): 263.0 | Speed (RPM): 1,560 | Rated Output (KW): 0.00 | Power Factor (%): 0.0 | Rated Output (Hp): 15.00 |
| Curvepoint: No Load | Current (Amps): 7.70 | Current (%): 41.0 | Torque (ft-lbs): 0.00 | Torque (%): 0.0 | Speed (RPM): 1,800 | Rated Output (KW): 0.00 | Power Factor (%): 0.0 | Rated Output (Hp): 15.00 |
Efficiency
Information not available at the moment. Please check back later!
