General Purpose Motor, 15 HP, 3 Ph, 60 Hz, 208-230/460 V, 900 RPM, 286T Frame, TEFC

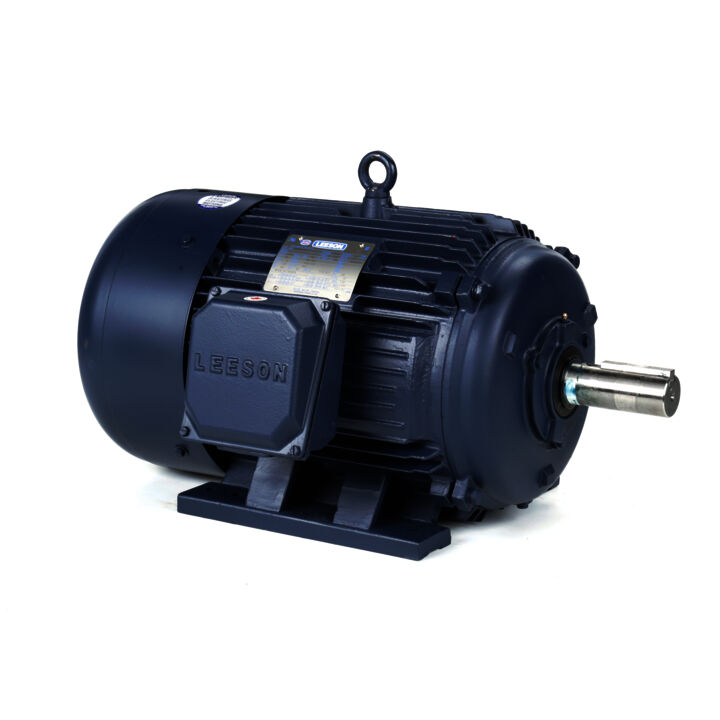

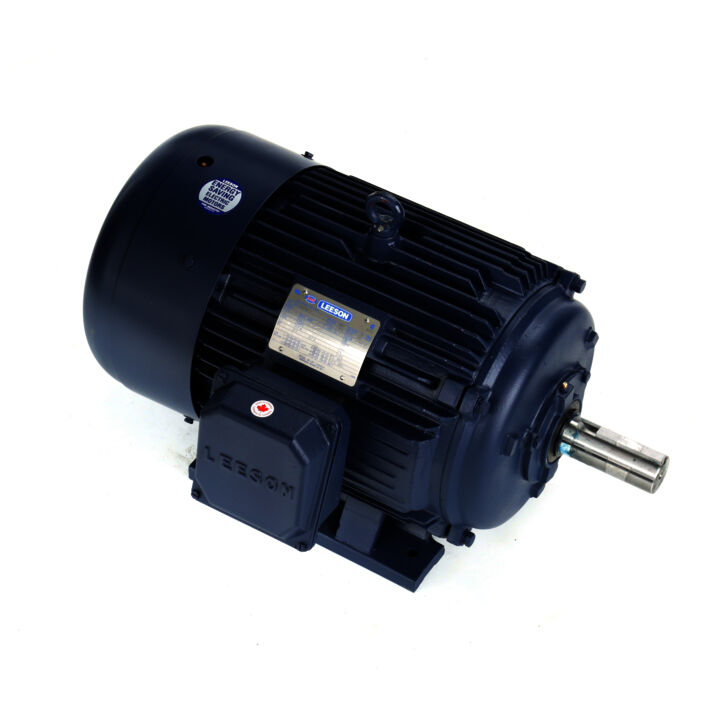

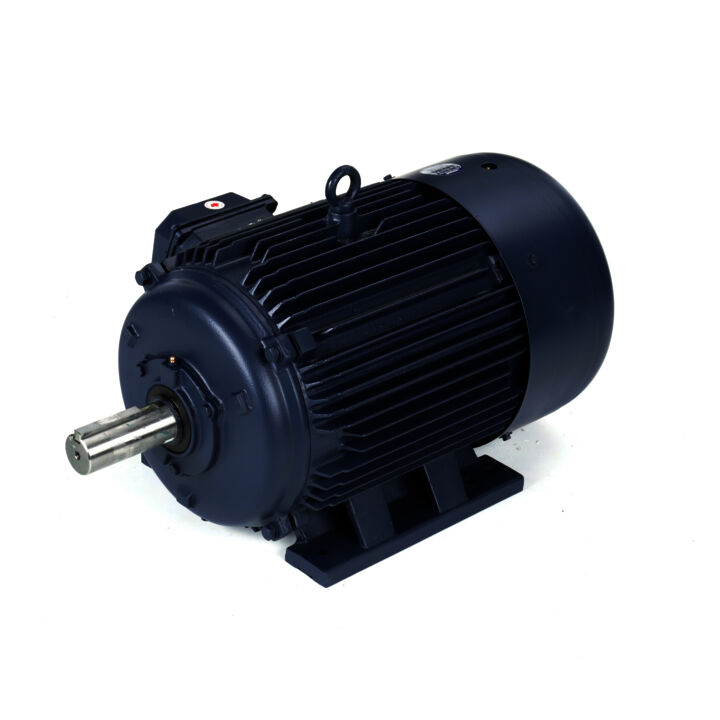

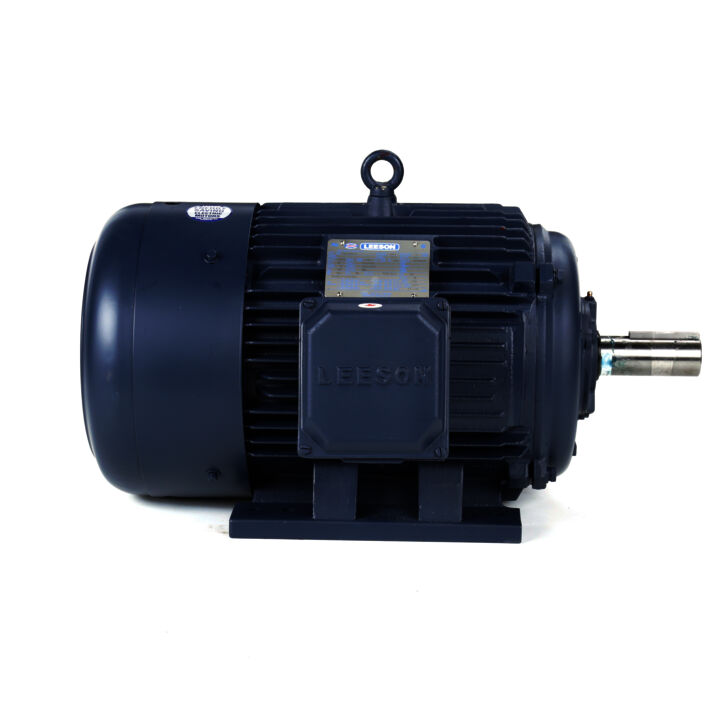

General Purpose Motor, 15 HP, 3 Ph, 60 Hz, 208-230/460 V, 900 RPM, 286T Frame, TEFC - G150261.22
Part#: G150261.22
Catalog#: G150261.22
Model#: G150261.22A
Weight: 480 lb
Your Price: Login is Required
Key Features
- Premium efficient ratings
- Inverter-rated; Continuous duty
- Class F insulation system – 140 frame and higher
- Class F insulation system – 140 frame and higher
- Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
- Dynamically balanced rotors
- Torques exceed NEMA performance standards; UL recognized and CSA certified
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 15 Hp |
| Output KW | Output KW: 11.2 kW | Voltage | Voltage: 208-230/460 V |
| Speed | Speed: 840 rpm | Service Factor | Service Factor: 1.15 |
| Frame | Frame: 286T | Enclosure | Enclosure: Totally Enclosed Fan Cooled |
| Thermal Protection | Thermal Protection: No Protection | Efficiency | Efficiency: 91 % |
| Ambient Temperature | Ambient Temperature: 40 °C | Frequency | Frequency: 60 Hz |
| Current | Current: 40.0/20.0 A | Power Factor | Power Factor: 75 |
| Duty | Duty: Continuous | Insulation Class | Insulation Class: ??? PLT=NA |
| Design Code | Design Code: B | KVA Code | KVA Code: K |
| Drive End Bearing Size | Drive End Bearing Size: 6311 | Opp Drive End Bearing Size | Opp Drive End Bearing Size: 6309 |
| UL | UL: Recognized | CSA | CSA: Y |
| CE | CE: Y | IP Code | IP Code: 43 |
| Number of Speeds | Number of Speeds: 1 |
| Electrical Type | Electrical Type: Squirrel Cage Induction Run | Starting Method | Starting Method: Across The Line |
| Poles | Poles: 8 | Rotation | Rotation: Reversible |
| Resistance Main | Resistance Main: .6175 Ohms | Mounting | Mounting: Rigid Base |
| Motor Orientation | Motor Orientation: Horizontal | Drive End Bearing | Drive End Bearing: Ball |
| Opp Drive End Bearing | Opp Drive End Bearing: Ball | Frame Material | Frame Material: Cast Iron |
| Shaft Type | Shaft Type: T | Overall Length | Overall Length: 27.83 in |
| Shaft Diameter | Shaft Diameter: 1.875 in | Shaft Extension | Shaft Extension: 4.62 in |
| Assembly/Box Mounting | Assembly/Box Mounting: F1/F2 CAPABLE |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: T |
| Current | Current: 40.0/20.0 A | Synchronous RPM | Synchronous RPM: 900 rpm |
| Frequency | Frequency: 60 Hz | Speed | Speed: 840 rpm |
| Connection Drawing | Connection Drawing: 004172.01 | Outline Drawing | Outline Drawing: 16953960 |
| Voltage | Voltage: 208-230/460 V | Output KW | Output KW: 11.2 kW |
| Output HP | Output HP: 15 Hp | Frame Size | Frame Size: 286 |
| Torque UOM | Torque UOM: LB-FT | Efficiency | Efficiency: 91 % |
| Packaged Length | Packaged Length: 18.00 IN | Weight | Weight: 480.00 LB |
| UPC | UPC: 691720151969 | Packaged Width | Packaged Width: 9.24 IN |
| Country of Origin | Country of Origin: Canada | Packaged Height | Packaged Height: 7.00 IN |
| % of Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% |
|---|---|---|---|---|---|---|---|
| % of Rated Load: Current (Amps) | 0%: 11.00 | 25%: 11.80 | 50%: 13.83 | 75%: 16.60 | 100%: 20.00 | 125%: 23.61 | 150%: 27.63 |
| % of Rated Load: Rated Output (KW) | 0%: 0.57 | 25%: 3.53 | 50%: 6.46 | 75%: 9.33 | 100%: 12.37 | 125%: 15.38 | 150%: 18.69 |
| % of Rated Load: Efficiency (%) | 0%: 0.0 | 25%: 84.2 | 50%: 89.2 | 75%: 90.8 | 100%: 91.0 | 125%: 90.0 | 150%: 89.3 |
| % of Rated Load: Power Factor (%) | 0%: 22.0 | 25%: 37.9 | 50%: 55.8 | 75%: 68.2 | 100%: 75.0 | 125%: 80.0 | 150%: 84.0 |
| % of Rated Load: Speed (RPM) | 0%: 900 | 25%: 896 | 50%: 892 | 75%: 888 | 100%: 884 | 125%: 880 | 150%: 875 |
| % of Rated Load: Temp. Rise @ FL | 0%: 0.0 | 25%: 0.0 | 50%: 0.0 | 75%: 0.0 | 100%: 40.2 | 125%: 0.0 | 150%: 0.0 |
| % of Rated Load: Torque (ft-lbs) | 0%: 0.00 | 25%: 23.11 | 50%: 45.68 | 75%: 7.67 | 100%: 89.98 | 125%: 112.34 | 150%: 134.40 |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
|---|---|---|---|---|---|---|---|---|
| Curvepoint: Pull-Up | Current (Amps): 0.00 | Current (%): | Torque (ft-lbs): 208.00 | Torque (%): 222.0 | Speed (RPM): 0 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 15.00 |
| Curvepoint: Locked-Rotor | Current (Amps): 151.00 | Current (%): | Torque (ft-lbs): 243.90 | Torque (%): 260.0 | Speed (RPM): 0 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 15.00 |
| Curvepoint: Break-Down | Current (Amps): 0.00 | Current (%): | Torque (ft-lbs): 331.10 | Torque (%): 353.0 | Speed (RPM): 0 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 15.00 |
| Curvepoint: Full Load | Current (Amps): 20.00 | Current (%): | Torque (ft-lbs): 93.80 | Torque (%): 100.0 | Speed (RPM): 0 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 15.00 |
