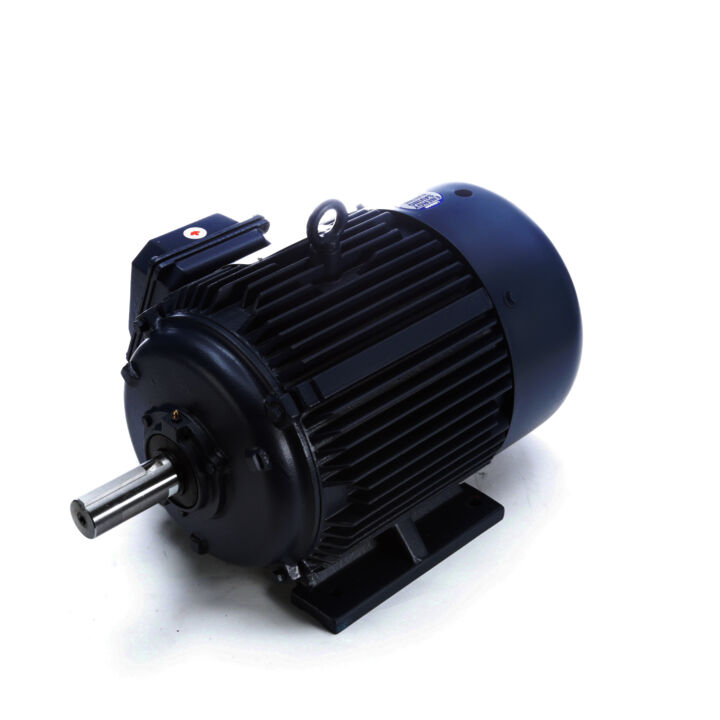

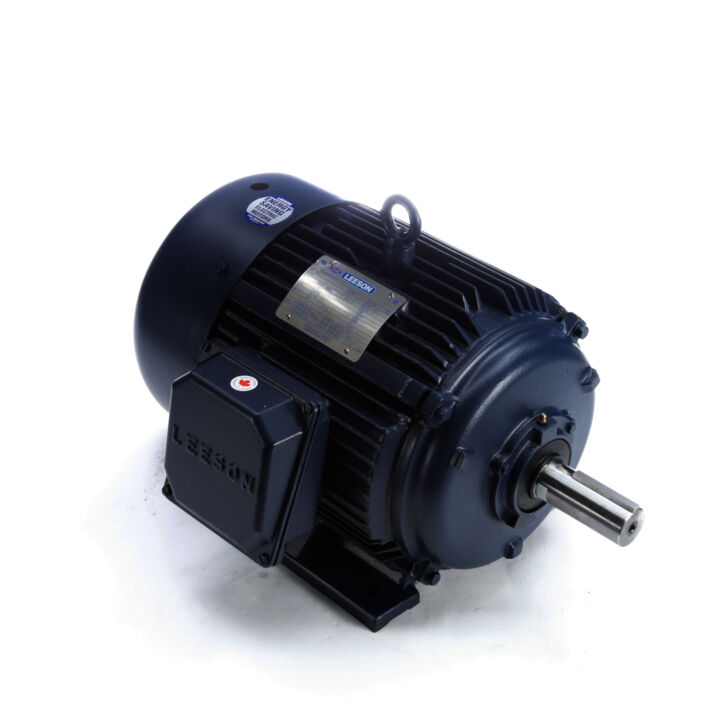

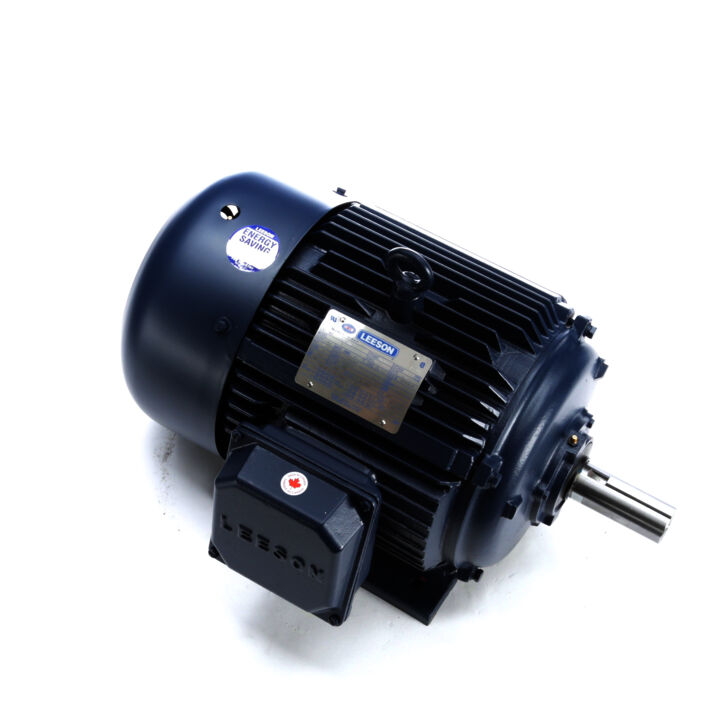

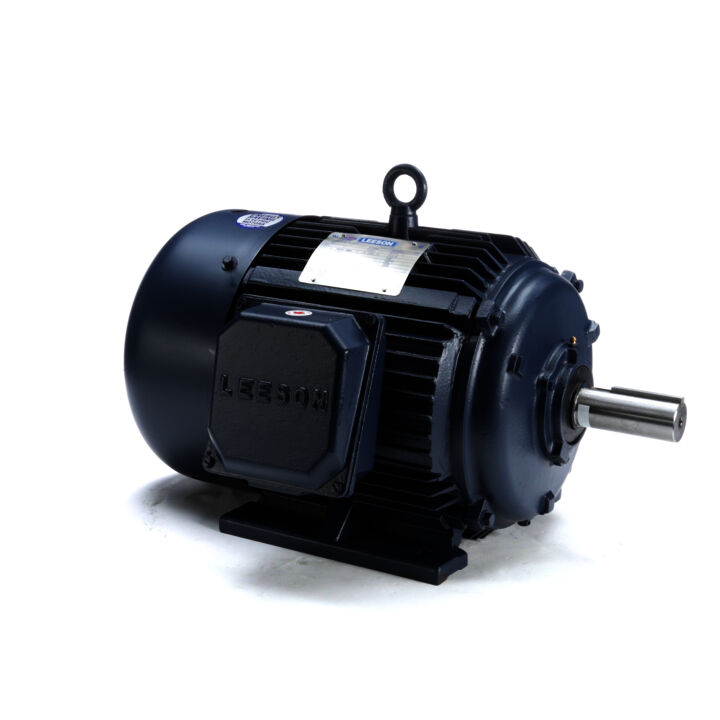

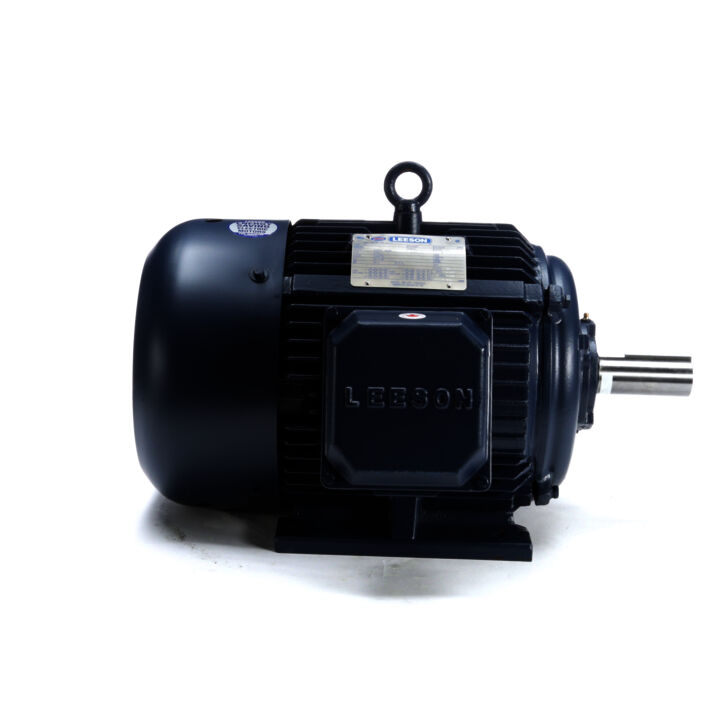

General Purpose Motor, 5 HP, 3 Ph, 60 Hz, 208-230/460 V, 900 RPM, 254T Frame, TEFC
General Purpose Motor, 5 HP, 3 Ph, 60 Hz, 208-230/460 V, 900 RPM, 254T Frame, TEFC - G151355.22
Part#: G151355.22
Catalog#: G151355.22
Model#: C254T8FB5AA
Weight: 188 lb
List Price: $7,628.00
Your Price: Login is Required
Key Features
- Premium efficient ratings
- Inverter-rated; Continuous duty
- Class F insulation system – 140 frame and higher
- Class F insulation system – 140 frame and higher
- Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
- Dynamically balanced rotors
- Torques exceed NEMA performance standards; UL recognized and CSA certified
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 5 Hp |
| Output KW | Output KW: 3.7 kW | Voltage | Voltage: 208-230/460 V |
| Speed | Speed: 860 rpm | Service Factor | Service Factor: 1.15 |
| Frame | Frame: 254T | Enclosure | Enclosure: Totally Enclosed Fan Cooled |
| Thermal Protection | Thermal Protection: No Protection | Efficiency | Efficiency: 88.3 % |
| Ambient Temperature | Ambient Temperature: 40 °C | Frequency | Frequency: 60 Hz |
| Current | Current: 15.9-14.4/7.2 A | Power Factor | Power Factor: 70 |
| Duty | Duty: Continuous | Insulation Class | Insulation Class: F |
| Design Code | Design Code: B | KVA Code | KVA Code: J |
| Drive End Bearing Size | Drive End Bearing Size: 6309 | Opp Drive End Bearing Size | Opp Drive End Bearing Size: 6308 |
| UL | UL: Recognized | CSA | CSA: Y |
| CE | CE: Y | IP Code | IP Code: 43 |
| Number of Speeds | Number of Speeds: 1 |
| Electrical Type | Electrical Type: Squirrel Cage Induction Run | Starting Method | Starting Method: Across The Line |
| Poles | Poles: 8 | Rotation | Rotation: Reversible |
| Resistance Main | Resistance Main: 2.225 Ohms | Mounting | Mounting: Rigid Base |
| Motor Orientation | Motor Orientation: Horizontal | Drive End Bearing | Drive End Bearing: Ball |
| Opp Drive End Bearing | Opp Drive End Bearing: Ball | Frame Material | Frame Material: Cast Iron |
| Shaft Type | Shaft Type: T | Overall Length | Overall Length: 23.19 in |
| Shaft Diameter | Shaft Diameter: 1.625 in | Shaft Extension | Shaft Extension: 4 in |
| Assembly/Box Mounting | Assembly/Box Mounting: F1/F2 CAPABLE |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: T |
| Current | Current: 15.9-14.4/7.2 A | Synchronous RPM | Synchronous RPM: 900 rpm |
| Frequency | Frequency: 60 Hz | Speed | Speed: 860 rpm |
| Connection Drawing | Connection Drawing: 004172.01 | Outline Drawing | Outline Drawing: 16953860-254T |
| Voltage | Voltage: 208-230/460 V | Output KW | Output KW: 3.7 kW |
| Output HP | Output HP: 5 Hp | Frame Size | Frame Size: 254 |
| Torque UOM | Torque UOM: LB-FT | Efficiency | Efficiency: 88.3 % |
| Packaged Length | Packaged Length: 25.50 IN | Weight | Weight: 188.00 LB |
| UPC | UPC: 691720981689 | Packaged Width | Packaged Width: 19.00 IN |
| Country of Origin | Country of Origin: Canada | Packaged Height | Packaged Height: 17.00 IN |
| % of Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% |
|---|---|---|---|---|---|---|---|
| % of Rated Load: Current (Amps) | 0%: 4.12 | 25%: 4.43 | 50%: 5.10 | 75%: 6.00 | 100%: 7.18 | 125%: 8.58 | 150%: 10.10 |
| % of Rated Load: Rated Output (KW) | 0%: 0.41 | 25%: 1.22 | 50%: 2.26 | 75%: 3.24 | 100%: 4.26 | 125%: 5.40 | 150%: 6.53 |
| % of Rated Load: Efficiency (%) | 0%: 0.0 | 25%: 79.9 | 50%: 86.7 | 75%: 88.1 | 100%: 88.3 | 125%: 88.1 | 150%: 86.8 |
| % of Rated Load: Power Factor (%) | 0%: 20.3 | 25%: 34.7 | 50%: 54.6 | 75%: 66.9 | 100%: 70.0 | 125%: 79.0 | 150%: 81.0 |
| % of Rated Load: Speed (RPM) | 0%: 898 | 25%: 894 | 50%: 888 | 75%: 881 | 100%: 873 | 125%: 866 | 150%: 857 |
| % of Rated Load: Temp. Rise @ FL | 0%: 0.0 | 25%: 0.0 | 50%: 0.0 | 75%: 0.0 | 100%: 29.1 | 125%: 0.0 | 150%: 0.0 |
| % of Rated Load: Torque (ft-lbs) | 0%: 0.00 | 25%: 8.67 | 50%: 16.57 | 75%: 23.98 | 100%: 31.39 | 125%: 39.57 | 150%: 47.50 |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
|---|---|---|---|---|---|---|---|---|
| Curvepoint: Full Load | Current (Amps): 7.20 | Current (%): | Torque (ft-lbs): 30.50 | Torque (%): 100.0 | Speed (RPM): 0 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 5.00 |
| Curvepoint: Locked-Rotor | Current (Amps): 45.00 | Current (%): | Torque (ft-lbs): 63.10 | Torque (%): 207.0 | Speed (RPM): 0 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 5.00 |
| Curvepoint: Break-Down | Current (Amps): 0.00 | Current (%): | Torque (ft-lbs): 100.00 | Torque (%): 328.0 | Speed (RPM): 0 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 5.00 |
| Curvepoint: Pull-Up | Current (Amps): 0.00 | Current (%): | Torque (ft-lbs): 63.00 | Torque (%): 207.0 | Speed (RPM): 0 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 5.00 |
Efficiency
| Country | Complies with standards |
|---|---|
| Country: United States | Complies with standards: check_circle |
| Country: Canada | Complies with standards: check_circle |
| Country: Mexico | Complies with standards: check_circle |
| Country: Australia | Complies with standards: check_circle |
| Country: Brazil | Complies with standards: check_circle |
| Country: Chile | Complies with standards: check_circle |
| Country: China | Complies with standards: check_circle |
| Country: Europe | Complies with standards: check_circle |
| Country: Japan | Complies with standards: check_circle |
| Country: New Zealand | Complies with standards: check_circle |
| Country: Saudi Arabia | Complies with standards: check_circle |
| Country: South Korea | Complies with standards: check_circle |
