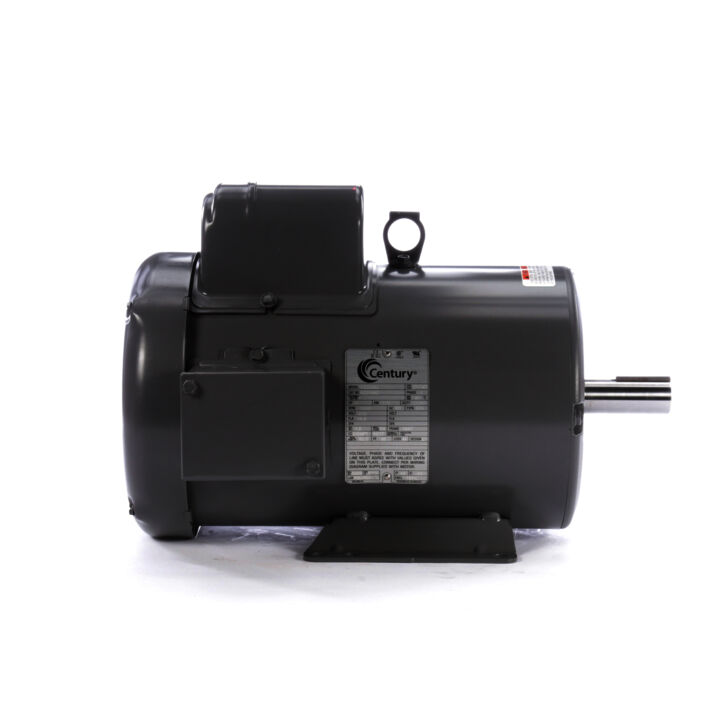

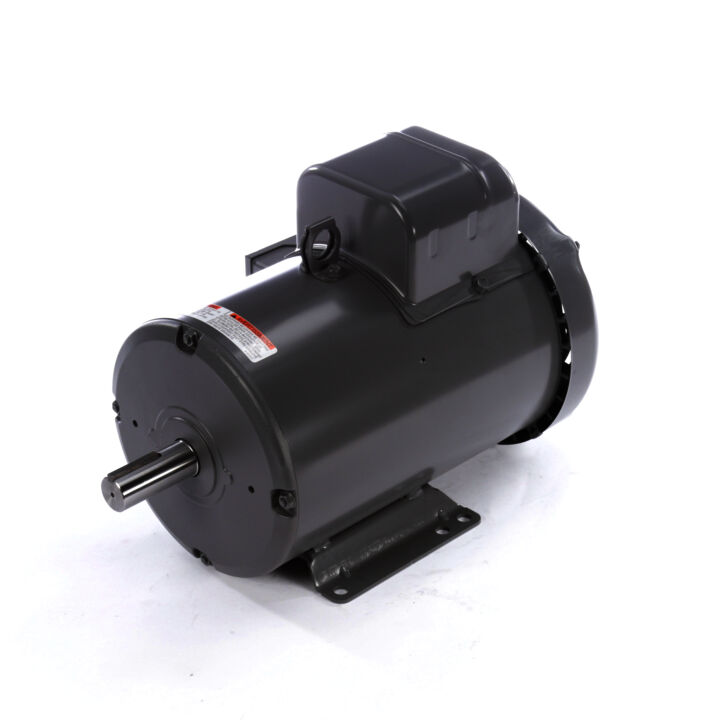

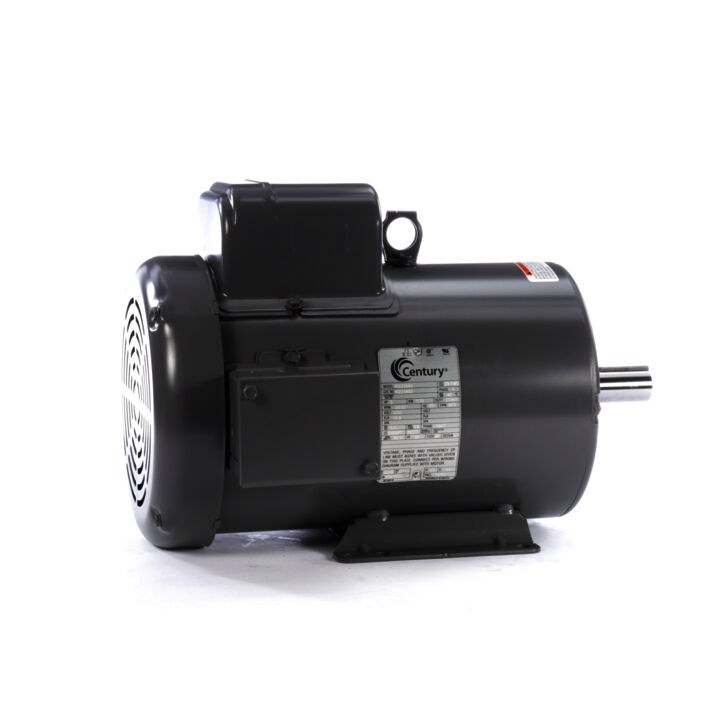

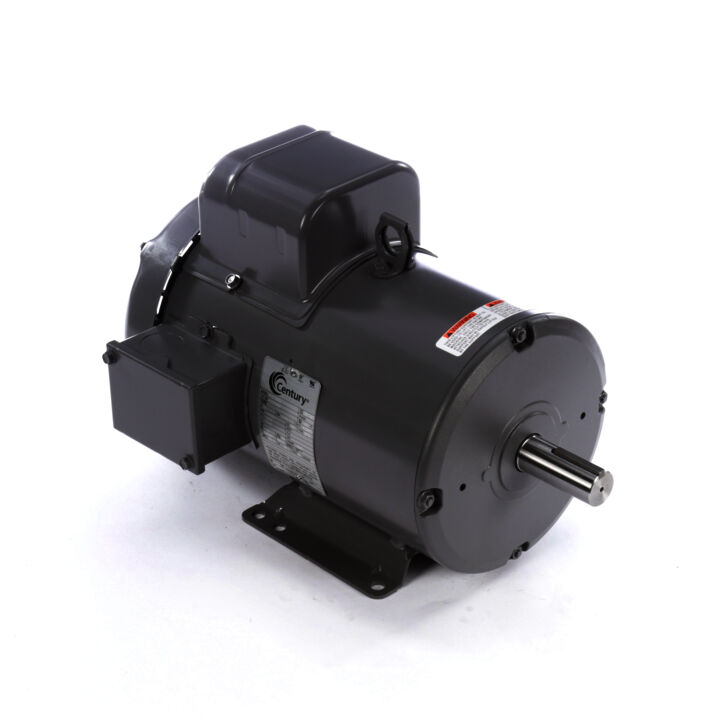

General Purpose Motor, 5 HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, 184T Frame, TEFC
General Purpose Motor, 5 HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, 184T Frame, TEFC - K223M2
Part#: K223M2
Catalog#: K223M2
Weight: 68 lb
Your Price: Login is Required
Key Features
- Heavy gauge steel construction
Specifications
| Phase | Phase: 1 | Output HP | Output HP: 5 Hp |
| Output KW | Output KW: 3.7 kW | Voltage | Voltage: 230 V |
| Speed | Speed: 3530 rpm | Service Factor | Service Factor: 1 |
| Frame | Frame: 184T | Enclosure | Enclosure: Totally Enclosed Fan Cooled |
| Thermal Protection | Thermal Protection: No Protection | Ambient Temperature | Ambient Temperature: 40 °C |
| Frequency | Frequency: 60 Hz | Current | Current: 19.8 A |
| Duty | Duty: Continuous | Insulation Class | Insulation Class: F |
| UL | UL: Recognized | CSA | CSA: Y |
| CE | CE: Y | Number of Speeds | Number of Speeds: 1 |
| Electrical Type | Electrical Type: Capacitor Start Capacitor Run | Starting Method | Starting Method: Across The Line |
| Poles | Poles: 2 | Rotation | Rotation: Selective Counterclockwise |
| Mounting | Mounting: Rigid Base | Drive End Bearing | Drive End Bearing: Ball |
| Opp Drive End Bearing | Opp Drive End Bearing: Ball | Frame Material | Frame Material: Rolled Steel |
| Shaft Type | Shaft Type: Keyed | Overall Length | Overall Length: 16.96 in |
| Frame Length | Frame Length: 11.50 in | Shaft Diameter | Shaft Diameter: 1.125 in |
| Shaft Extension | Shaft Extension: 2.81 in |
| Service Factor | Service Factor: 1 | Frame Suffix | Frame Suffix: T |
| Synchronous RPM | Synchronous RPM: 3600 rpm | Frequency | Frequency: 60 Hz |
| Speed | Speed: 3530 rpm | Connection Drawing | Connection Drawing: 005018.01CY |
| Outline Drawing | Outline Drawing: 035564CY | Voltage | Voltage: 230 V |
| Output KW | Output KW: 3.7 kW | Output HP | Output HP: 5 Hp |
| Frame Size | Frame Size: 184 | Packaged Length | Packaged Length: 17.94 IN |
| Weight | Weight: 68.00 LB | UPC | UPC: 786674069177 |
| Packaged Width | Packaged Width: 13.06 IN | Country of Origin | Country of Origin: Mexico |
| Packaged Height | Packaged Height: 12.88 IN |
Efficiency
Information not available at the moment. Please check back later!
