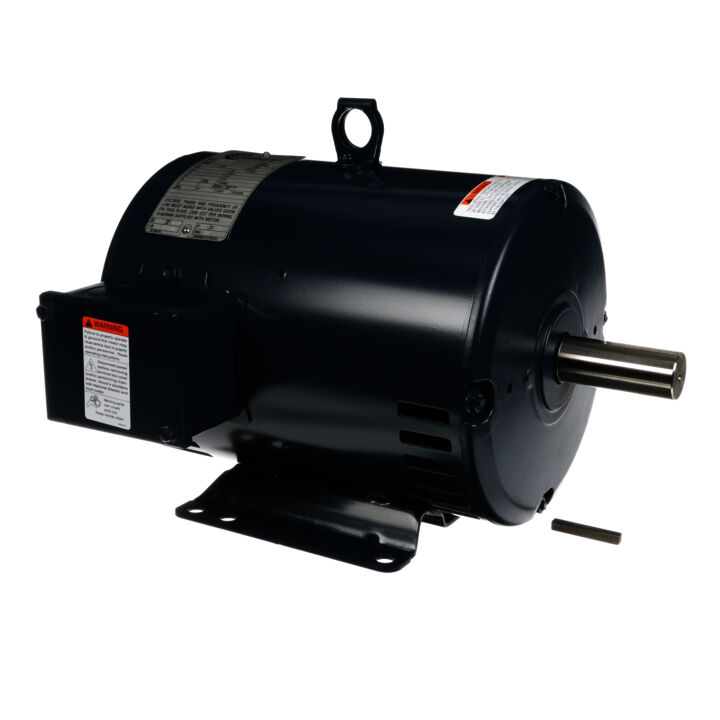

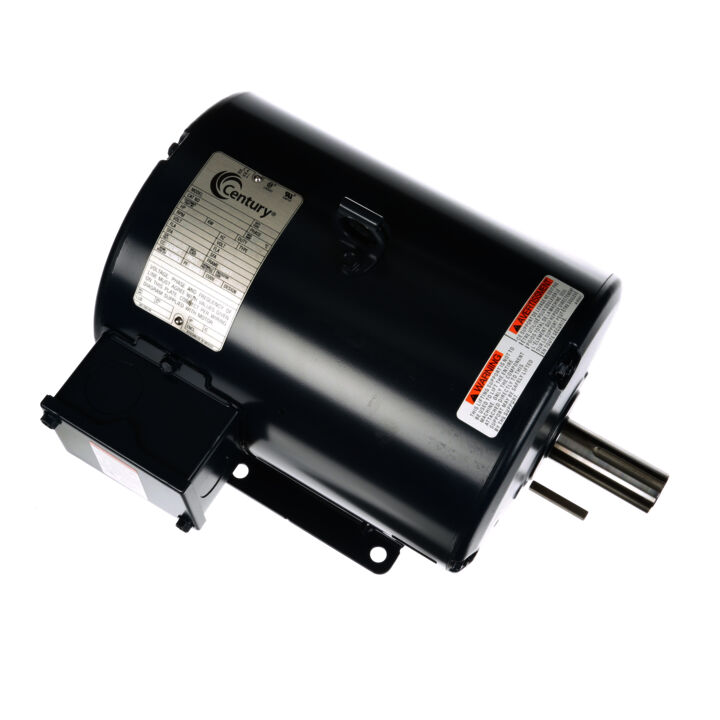

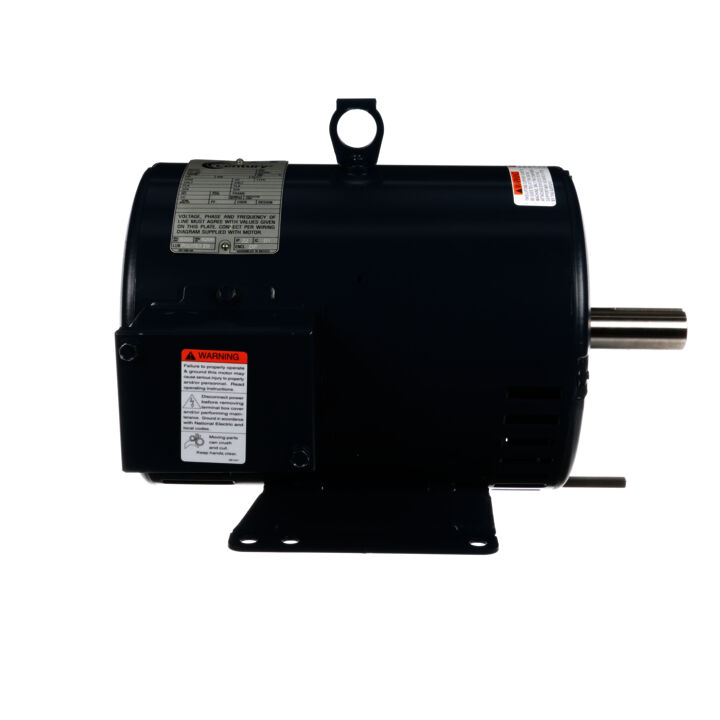

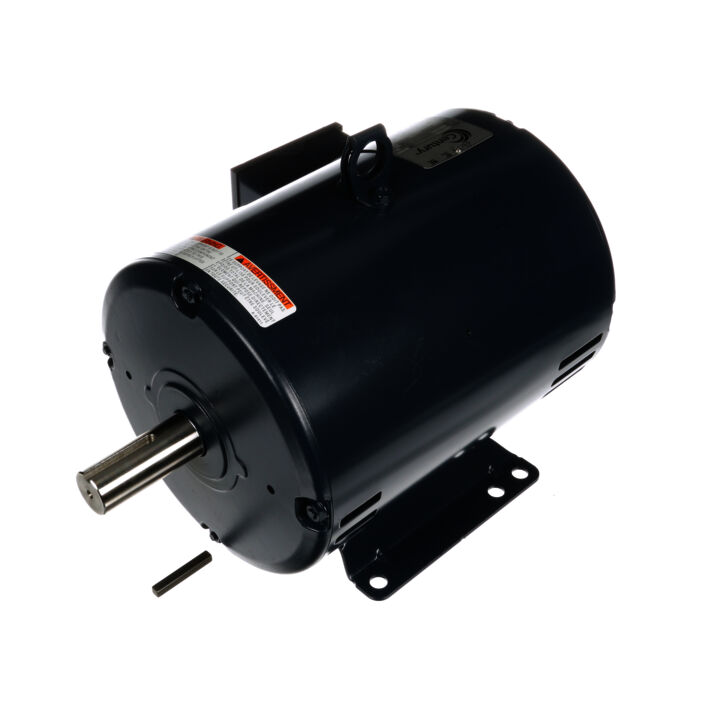

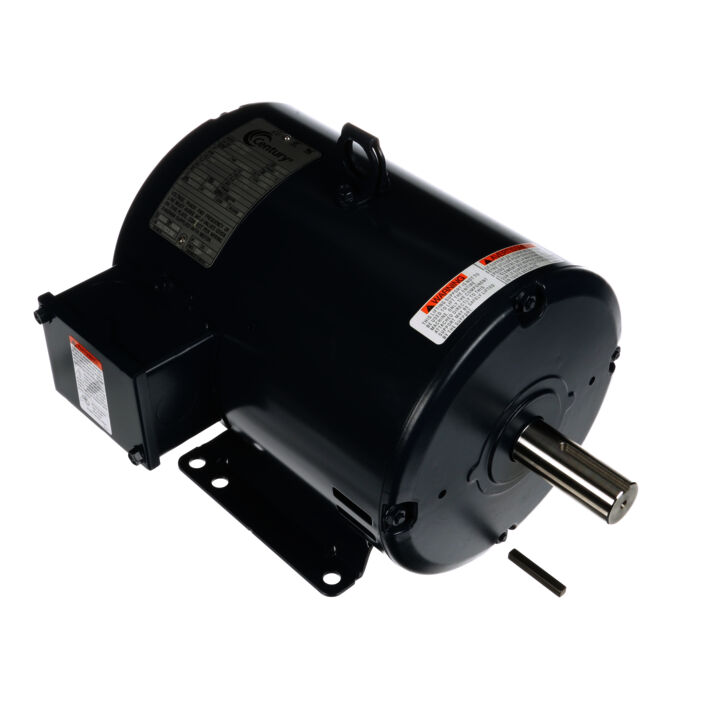

General Purpose Motor, 3/0.75 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 184T Frame, ODP
General Purpose Motor, 3/0.75 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 184T Frame, ODP - M211M2
Part#: M211M2
Catalog#: M211M2
Weight: 81 lb
Your Price: Login is Required
Key Features
- Ball bearings
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 3/0.75 Hp |
| Output KW | Output KW: 2.2 kW | Voltage | Voltage: 460 V |
| Speed | Speed: 1765/885 rpm | Service Factor | Service Factor: 1.15 |
| Frame | Frame: 184T | Enclosure | Enclosure: Open Drip Proof |
| Thermal Protection | Thermal Protection: No Protection | Ambient Temperature | Ambient Temperature: 40 °C |
| Frequency | Frequency: 60 Hz | Current | Current: 4/2.75 A |
| Duty | Duty: Continuous | Insulation Class | Insulation Class: F |
| UL | UL: Recognized | CSA | CSA: Y |
| CE | CE: Y | Number of Speeds | Number of Speeds: 2-1-VT |
| Electrical Type | Electrical Type: Polyphase | Starting Method | Starting Method: Across The Line |
| Poles | Poles: 4/ 8 | Rotation | Rotation: Reversible |
| Mounting | Mounting: Rigid Base | Drive End Bearing | Drive End Bearing: Ball |
| Opp Drive End Bearing | Opp Drive End Bearing: Ball | Frame Material | Frame Material: Rolled Steel |
| Shaft Type | Shaft Type: Keyed | Overall Length | Overall Length: 14.19 in |
| Frame Length | Frame Length: 10 in | Shaft Diameter | Shaft Diameter: 1.125 in |
| Shaft Extension | Shaft Extension: 2.81 in |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: T |
| Synchronous RPM | Synchronous RPM: 1800 rpm | Frequency | Frequency: 60 Hz |
| Speed | Speed: 1765 rpm | Connection Drawing | Connection Drawing: 005046.01CY |
| Outline Drawing | Outline Drawing: 035539CY | Voltage | Voltage: 460 V |
| Output KW | Output KW: 2.2 kW | Output HP | Output HP: 3 Hp |
| Frame Size | Frame Size: 184 | Packaged Length | Packaged Length: 17.94 IN |
| Weight | Weight: 81.00 LB | UPC | UPC: 786674066909 |
| Packaged Width | Packaged Width: 13.06 IN | HTC | HTC: 8501.52.4000 |
| Country of Origin | Country of Origin: Mexico | Packaged Height | Packaged Height: 12.88 IN |
Efficiency
Information not available at the moment. Please check back later!
