Cast Iron Motor, 75 HP, 3 Ph, 50 Hz, 400 V, 1000 RPM, 280M Frame, TEFC
Resource Center

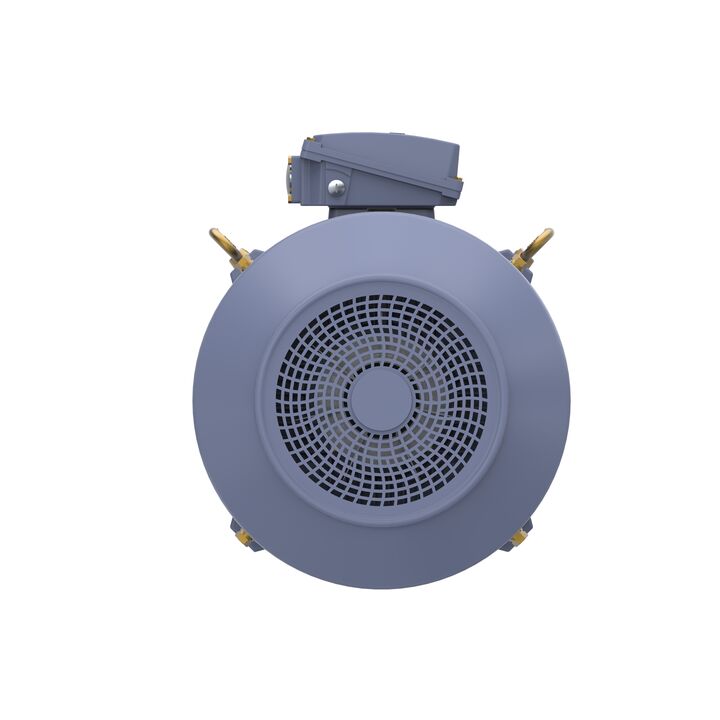

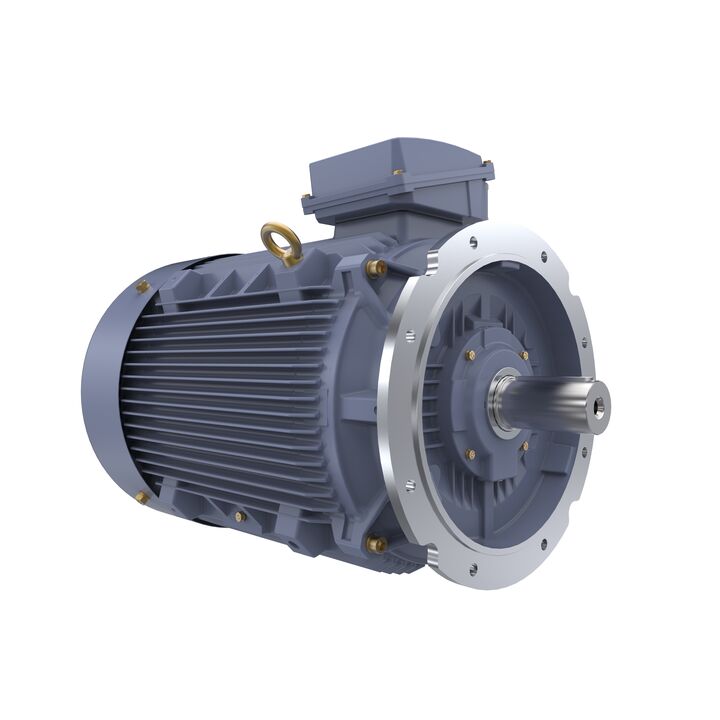

TerraMAX® Cast Iron Motor, 75 HP, 3 Ph, 50 Hz, 400 V, 1000 RPM, 280M Frame, TEFC - TCN0553A1121GAC010

Part#: TCN0553A1121GAC010

Catalog#: TCN0553A1121GAC010

Model#: TCN0553A1121GAC010

Weight: 1402.14 lb

location_on Where to Buy

Key Features

  • Confirms to IEC 60079-0/ IEC 60079-15/ EN 60079-0/ EN 60079-172
  • Class F insulation and Class B rise
  • Bi-directional fan
  • Ambient 40°C
  • Suitable for Zone 2 & Gas group- IIC
  • B5(Special mounting on request)
  • Protection IP55
  • Captive screws for Terminal Box cover
  • Temprature Class T3
  • Certified to ATEX / IEC Ex

Specifications

Phase Phase: 3 Output HP Output HP: 75 Hp
Output KW Output KW: 55 kW Voltage Voltage: 400 V
Speed Speed: 989 rpm Service Factor Service Factor: 1
Frame Frame: 280M Enclosure Enclosure: Totally Enclosed Fan Cooled
Thermal Protection Thermal Protection: No Protection Efficiency Efficiency: 94.1 %
Ambient Temperature Ambient Temperature: 40 °C Frequency Frequency: 50 Hz
Current Current: 101.6 A Power Factor Power Factor: 0.83
Duty Duty: S1 Insulation Class Insulation Class: F
Drive End Bearing Size Drive End Bearing Size: 6317 Opp Drive End Bearing Size Opp Drive End Bearing Size: 6317
UL UL: No CSA CSA: No
CE CE: Yes IP Code IP Code: 55
Number of Speeds Number of Speeds: 1 Efficiency Class Efficiency Class: IE3
Electrical Type Electrical Type: Squirrel Cage Starting Method Starting Method: Direct On Line
Poles Poles: 6 Rotation Rotation: Bi-Directional
Mounting Mounting: B5 Motor Orientation Motor Orientation: Horizontal
Drive End Bearing Drive End Bearing: C3 Opp Drive End Bearing Opp Drive End Bearing: C3
Frame Material Frame Material: Cast Iron Shaft Type Shaft Type: Keyed
Overall Length Overall Length: 1111 mm Frame Length Frame Length: 600 mm
Shaft Diameter Shaft Diameter: 75 mm Shaft Extension Shaft Extension: 140 mm
Assembly/Box Mounting Assembly/Box Mounting: Top
Service Factor Service Factor: 1 Frame Suffix Frame Suffix: M
Current Current: 101.6 A Frequency Frequency: 50 Hz
Speed Speed: 989 rpm Connection Drawing Connection Drawing: 8442000085
Outline Drawing Outline Drawing: 0228000591 Voltage Voltage: 400 V
Output KW Output KW: 55 kW Output HP Output HP: 75 Hp
Frame Size Frame Size: 280 Efficiency Efficiency: 94.1 %

Efficiency
